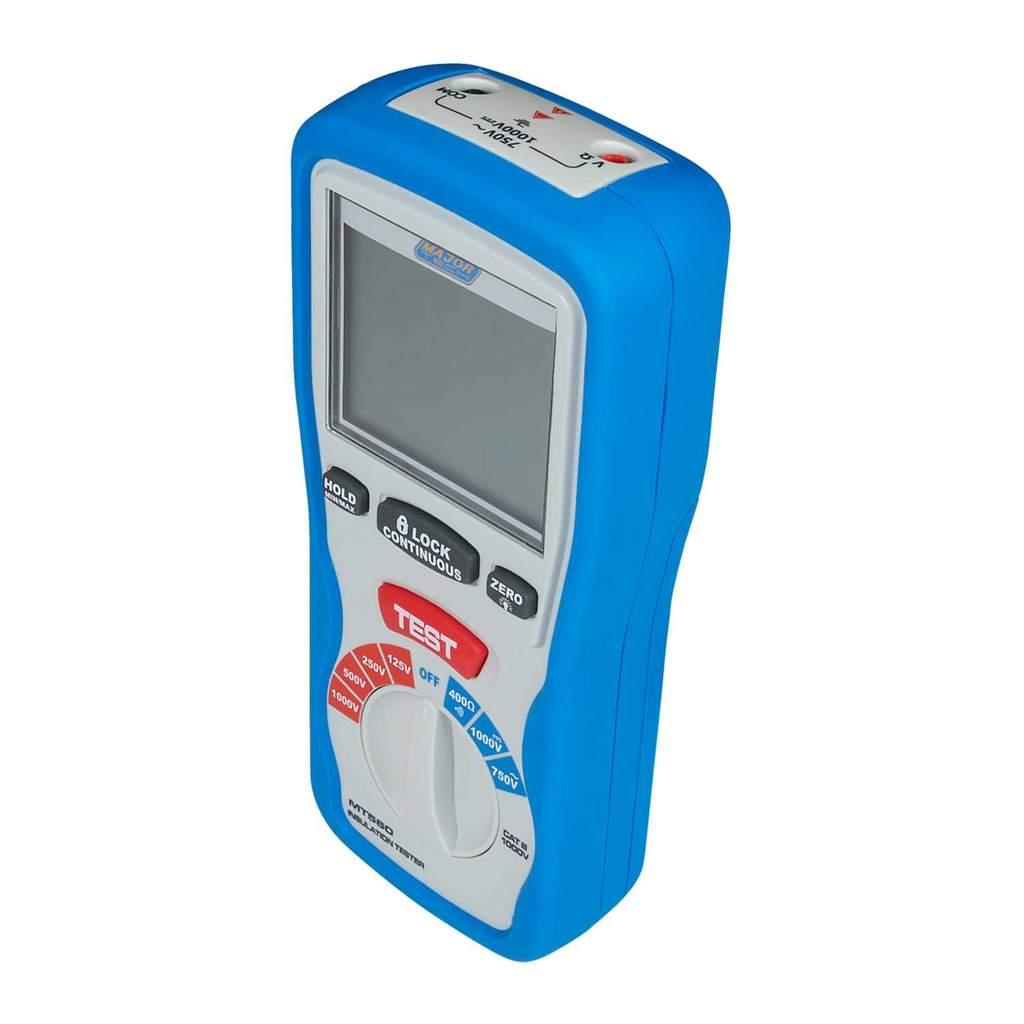

Major Tech Digital Insulation Tester 1000V
Part Number: MT560
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Four test ranges 125V, 250V, 500V, 1000V
- Min/max record mode
- Measures AC Voltage to 750V and DC Voltage to 1000V
- Large dual LCD display with bargraph
- Live circuit detection prevents insulation tests if voltage <gt/>30V
- Auto null of test lead resistance
- 1mA output current on insulation test
- 200mA short circuit on continuity range
- Continuity buzzer
- Automatic discharge of captive voltage after test for added protection
- Data hold function
- Lock down test button for continuous use
- Hands free strap and magnet supplied as standard accessories
- Rubber overmold housing
- Illuminated display
- Ac Current Measurement
- 200mA
- Ac Voltage Measurement
- 750V AC
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Colour
- Blue/White
- Continuity Check
- Yes
- Dc Voltage Measurement
- 1000V DC
- Depth
- 50mm
- Dimensions
- (H)200 mm x (W)92 mm x (D)50 mm
- Display Type
- Dual LCD Display
- Guarantee
- 2 Years
- Height
- 200mm
- Insulation Test Voltage
- 1000V
- Material
- Plastic
- Number Of Batteries
- 6
- Packaging Types
- Each
- Product Range
- Instruments
- Resistance
- 40Ω – 400Ω
- Resistance Measurement
- 40Ω – 400 Ω
- Safety Range
- CAT IV 600V and CAT III 1000V
- Standards
- IEC 61010-1
- Supplied With
- Test Leads Black Croc Lead Magnetic Strip Carrying Case Adjustable Shoulder Strap 6 x AA Batteries Instruction Manual
- Type
- Insulation Tester
- Unspsc V18
- 41113624
- Unspsc V24
- 41113624
- Voltage Rating
- 750V AC
- Weight
- 1.167kg
- Width
- 92mm
