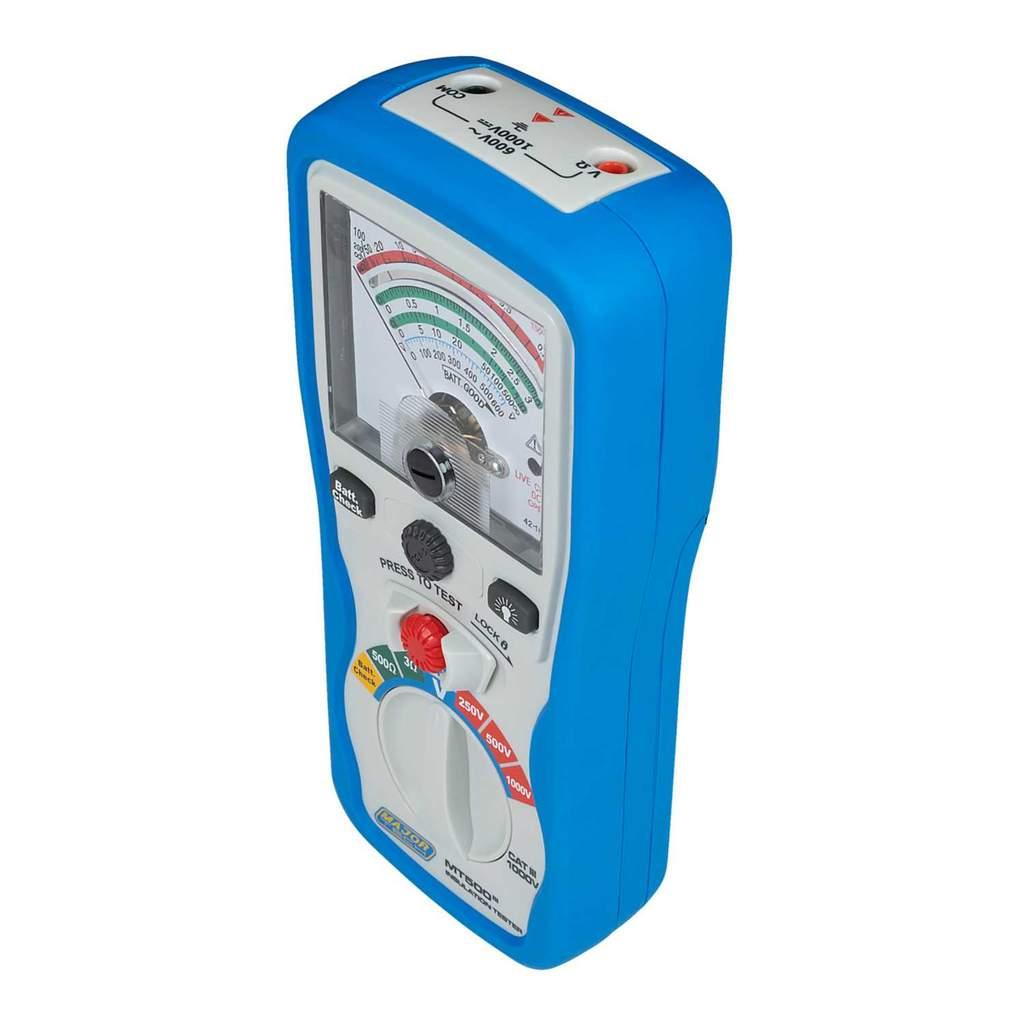

Major Tech Analogue Insulation Tester 1000V AC
Part Number: MT500
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Three test ranges 250V, 500V, 1000V
- 600V AC voltage range
- Live circuit warning and buzzer
- Data hold function
- 1mA output current on insulation test
- 200mA short circuit on continuity range
- Automatic discharge after test
- Front panel zero adjustment for test lead resistance
- Lock down test button for continuous use
- Hands free strap and magnet supplied as standard accessories
- Rubber overmold housing
- Illuminated display
- Ac Current Measurement
- 200mA
- Ac Voltage Measurement
- 600V AC
- Accuracy Insulation Resistance Measuring
- ± 5 % 5 digits
- Battery Level Indicator
- Yes
- Battery Size
- AA
- Battery Type
- Alkaline
- Colour
- Blue/White
- Continuity Check
- Yes
- Depth
- 50mm
- Dimensions
- (H)200 mm x (W)92 mm x (D)50 mm
- Display Type
- Analogue Multimeter
- Guarantee
- 2 Years
- Height
- 200mm
- Input Impedance
- 1.2Ω
- Material
- Plastic / Rubber
- Number Of Batteries
- 6
- Packaging Types
- Each
- Product Range
- Instruments
- Resistance
- 3Ω – 500Ω
- Resistance Measurement
- 3Ω – 500 Ω
- Safety Range
- CAT IV 600V and CAT III 1000V
- Standards
- IEC 61010-1
- Supplied With
- Test Leads Black Croc Lead Magnetic Strip Carrying Case Adjustable Shoulder Strap 6 x AA Batteries Instruction Manual
- Type
- Insulation Tester
- Unspsc V18
- 41113624
- Unspsc V24
- 41113624
- Voltage Rating
- 600V AC
- Weight
- 1.135kg
- Width
- 92mm
