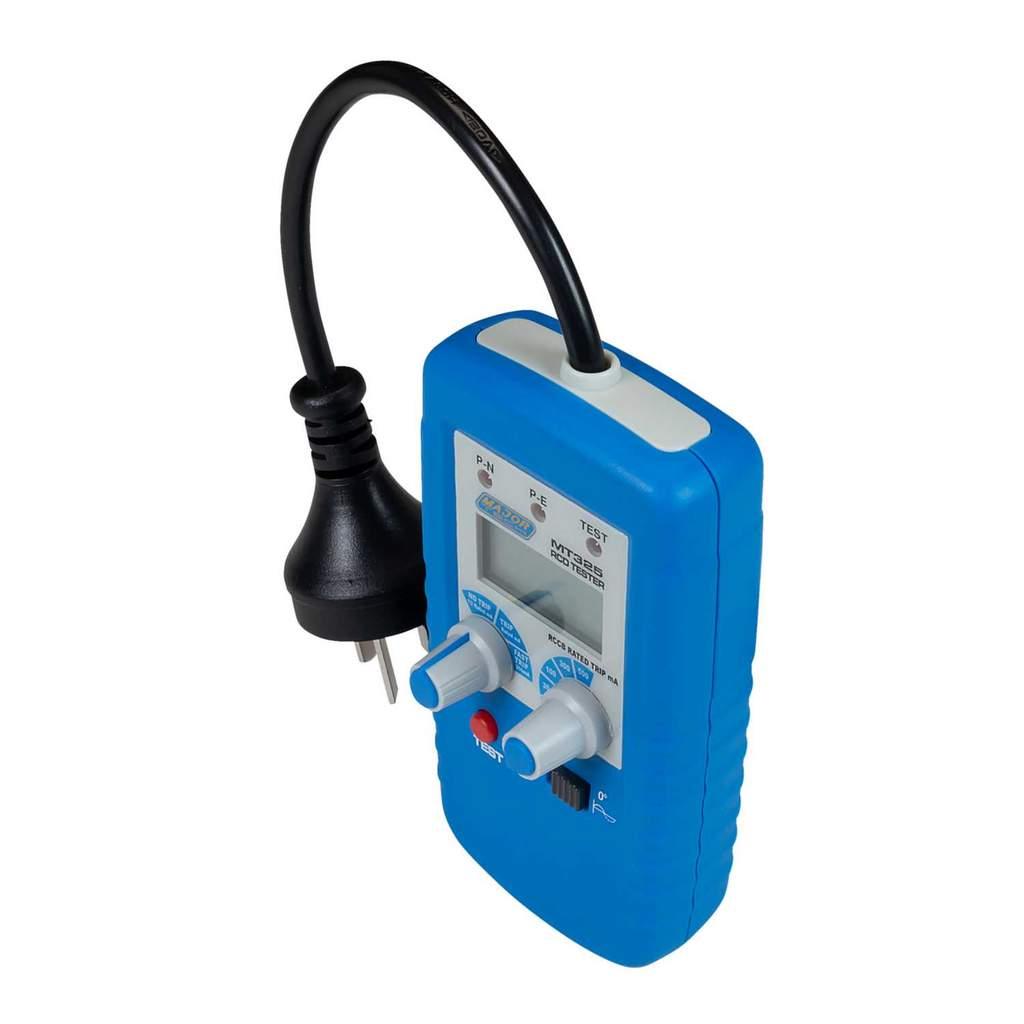

Major Tech RCB/ELCB Tester
Part Number: MT325
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Double injection housing
- Correct wiring indication
- 2000ms direct readout of disconnection time
- Fully programmed test current settings
- Accurate readout of tripping time with a resolution of 1ms
- Two LED lamps give quick check for correct wiring
- Compact, lightweight and simple to use
- 0° or 180° phase angle selection
- Current setting from 5mA to 500mA
- Operating voltage 230V AC
- Data hold function to freeze the digital trip time on the LCD
- Colour
- Blue/White
- Continuity Check
- No
- Depth
- 30mm
- Dimensions
- (H)128 mm x (W)68 mm x (D)30 mm
- Display Type
- LCD
- Guarantee
- 2 Years
- Height
- 128mm
- Material
- Plastic
- Neon
- Yes
- Packaging Types
- Each
- Product Range
- Instruments
- Safety Range
- CAT III 600V and CAT II 1000V
- Standards
- IEC 61010-1 CAT IV 300V IEC 61010-1 CAT III 600V
- Supplied With
- Instruction Manual
- Type
- RCD Tester
- Voltage Rating
- 240V AC
- Weight
- 0.204kg
- Width
- 68mm
