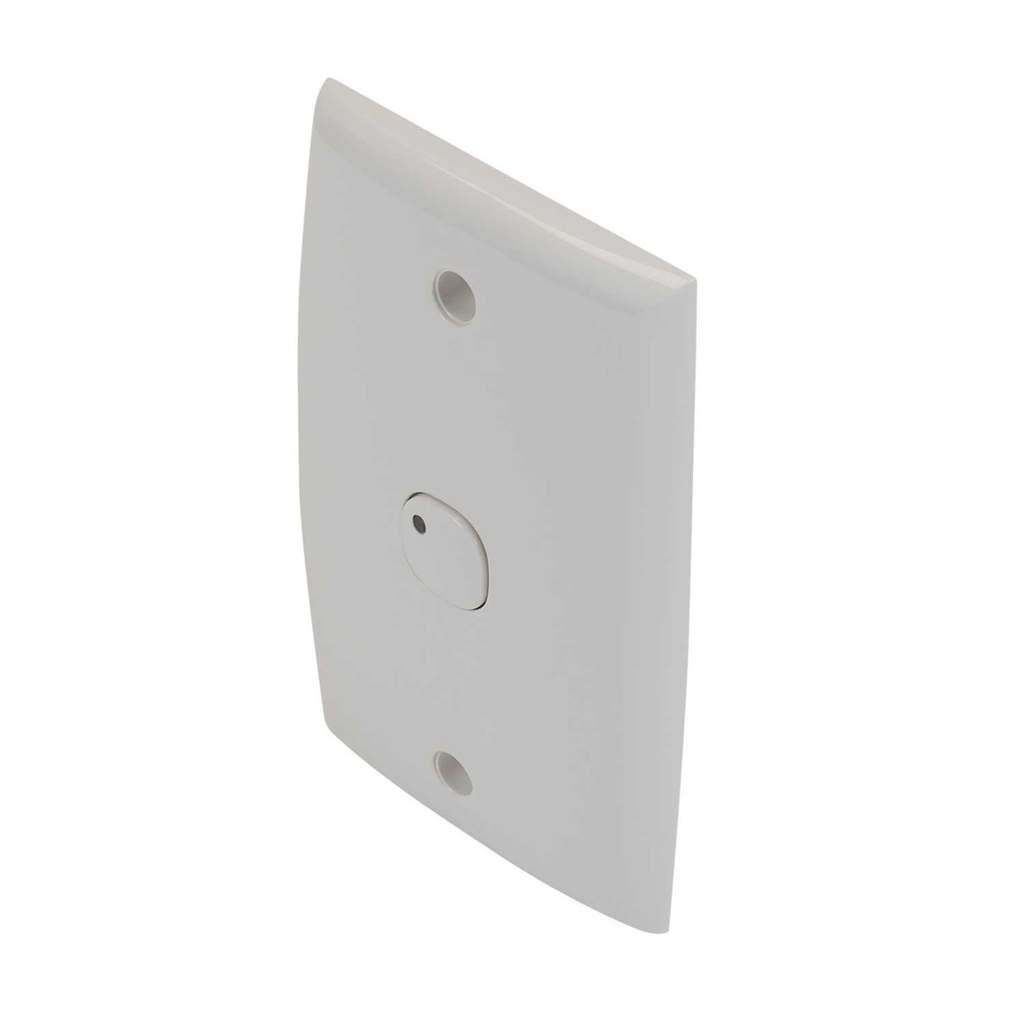

Clipsal 1 Gang 2 Wire Time Delay Switch 10A Standard Series White
Part Number: 31VETR-WE
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Simple pushbutton timer for lights and fans
- Energy and cost-saving
- 10A switching capability, suitable for a wide range of load types, including incandescent, inductive and fluorescent loads
- Permits remote control of timer from any pushbutton switch
- Provides more room for wiring and easier fitting into standard wall box
- Time setting selection from 15 seconds to 254 minutes
- Requires a minimum load of 40mA to operate correctly
- If the load to be controlled is less than 40mA, a load capacitor should be connected between the load and active terminal of the timer
- Colour
- White
- Current Rating
- 10A
- Depth
- 11mm
- Dimensions
- (H)115 mm x (W)73 mm x (D)11 mm
- Finish
- Gloss Finish
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 115mm
- Material
- Plastic
- Mounting
- Flush
- Neon
- Yes
- Number Of Wire Connections
- 2
- Operating Load
- 10A
- Packaging Types
- Each
- Product Range
- Standard Series
- Standards
- AS/NZS 3133 AS/NZS 3100
- Timer Range
- 10-254min
- Type
- Time Lag Switch
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 250V AC
- Weight
- 0.158kg
- Width
- 73mm
