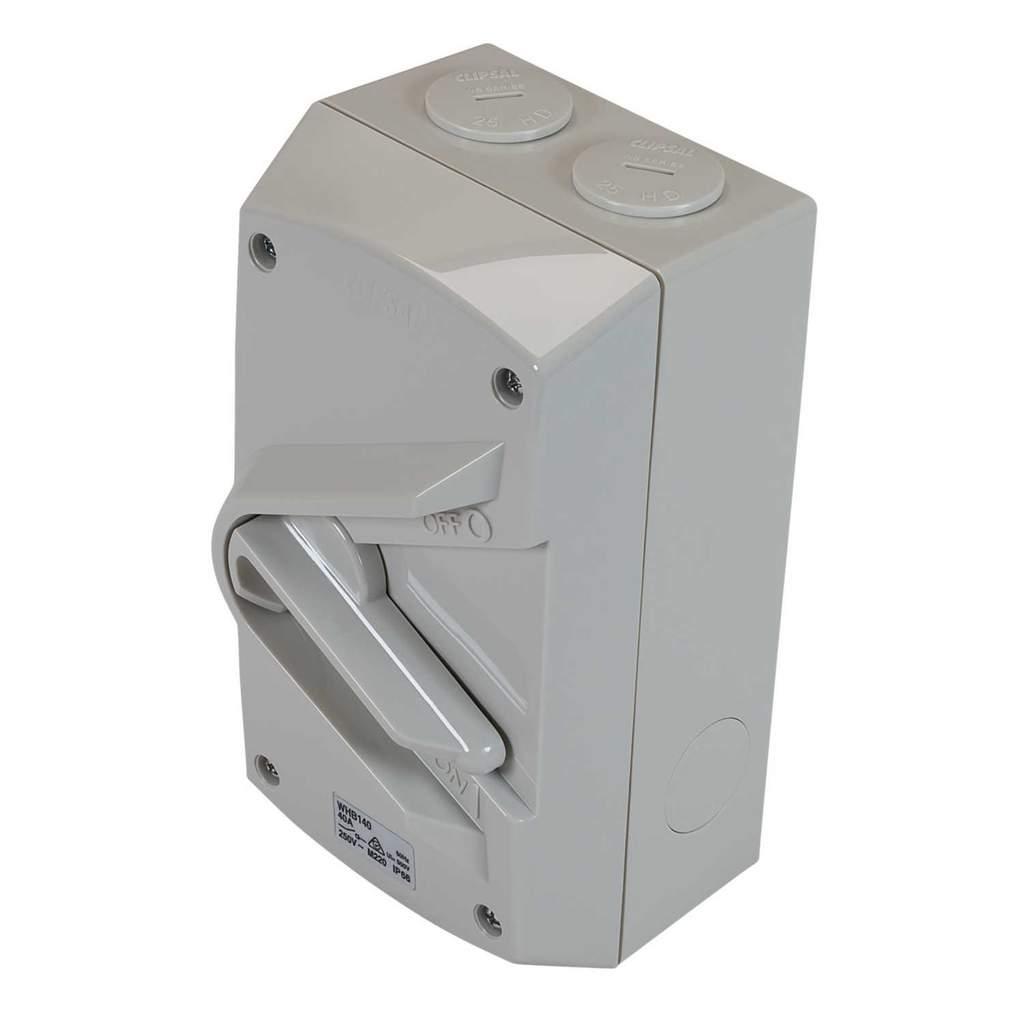

Clipsal 40A 1 Pole Isolating Switch IP66 Resistant Grey
Part Number: WHB140-RG
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Weatherproof lever handle isolator, impact and corrosion resistant
- Chemical resistant properties and UV protected
- ON/OFF position clearly indicated
- Provision for 8mm padlock
- 20mm and 25mm gland knockouts
- Single piece sealing gasket
- Colour
- Grey
- Compliance
- IEC 60669-1
- Current Rating
- 40A
- Depth
- 85mm
- Dimensions
- (H)165 mm x (W)94 mm x (D)85 mm
- Finish
- Gloss Finish
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 165mm
- IP Rating
- IP66
- Material
- Polycarbonate
- Mounting
- Surface
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- Weathershield
- Shape
- Rectangular
- Standards
- AS 60529; AS/NZS 60947-3; IEC 60669-1
- Type
- Isolating Switch
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 250V AC
- Weight
- 0.484kg
- Width
- 94mm
