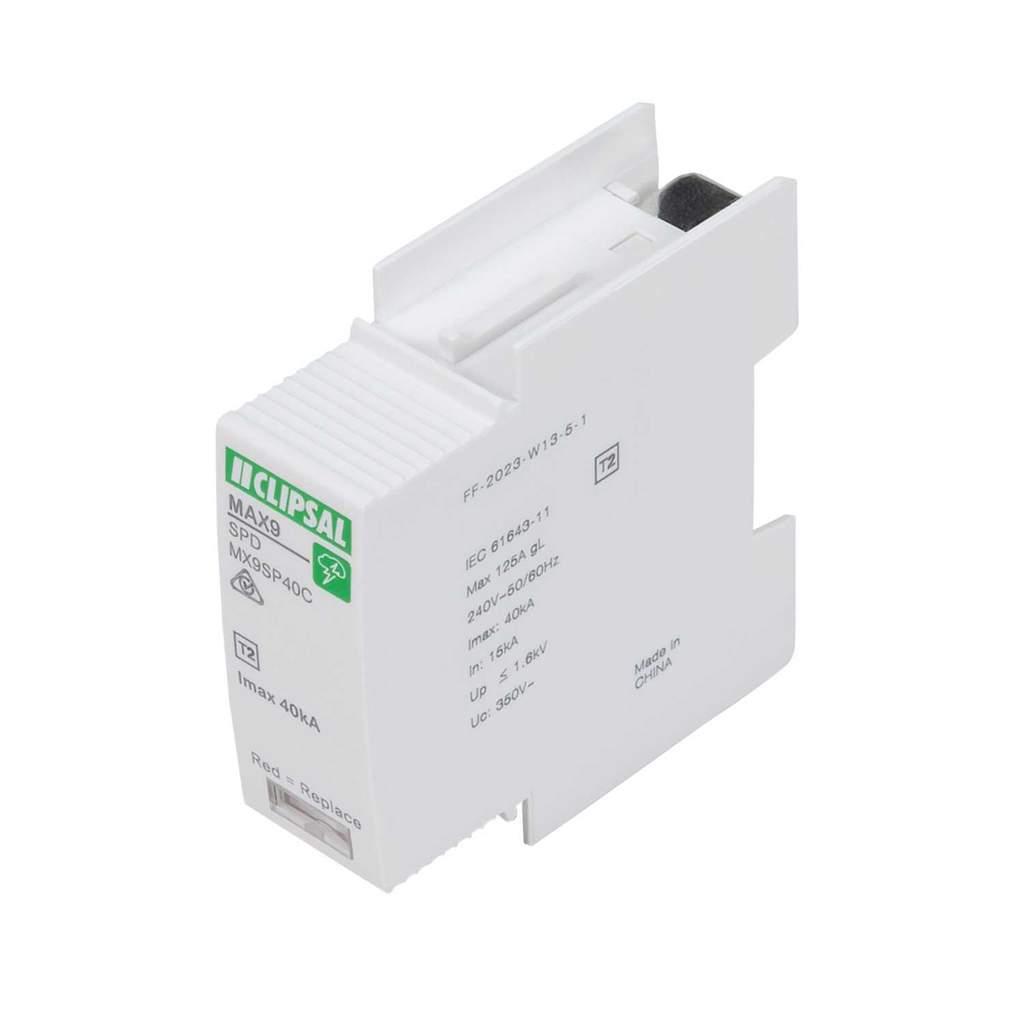

Clipsal 1 Pole 40kA SPD Replacement Cartridge MAX9 White
Part Number: MX9SP40C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Replacement Type 2 / Class II cartridge for single and three pole SPDs
- Easy to identify when replacement is needed with indicator window on SPD
- Cartridge replacement is quick and easy
- Maximum discharge capacity of 40kA
- Colour
- White/Green
- Depth
- 55.5mm
- Dimensions
- (H)56.5 mm x (W)18 mm x (D)55.5 mm
- Frequency
- 50/60 Hz
- Guarantee
- 7 Years
- Height
- 56.5mm
- IP Rating
- IP20
- Material
- Plastic
- Maximum Discharge Current
- 40kA
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- MAX9
- Standards
- IEC 61643-11
- Type
- Surge Protection Device
- Unspsc V18
- 39121634
- Unspsc V24
- 39121634
- Voltage Rating
- 240V AC
- Weight
- 0.051kg
- Width
- 18mm
