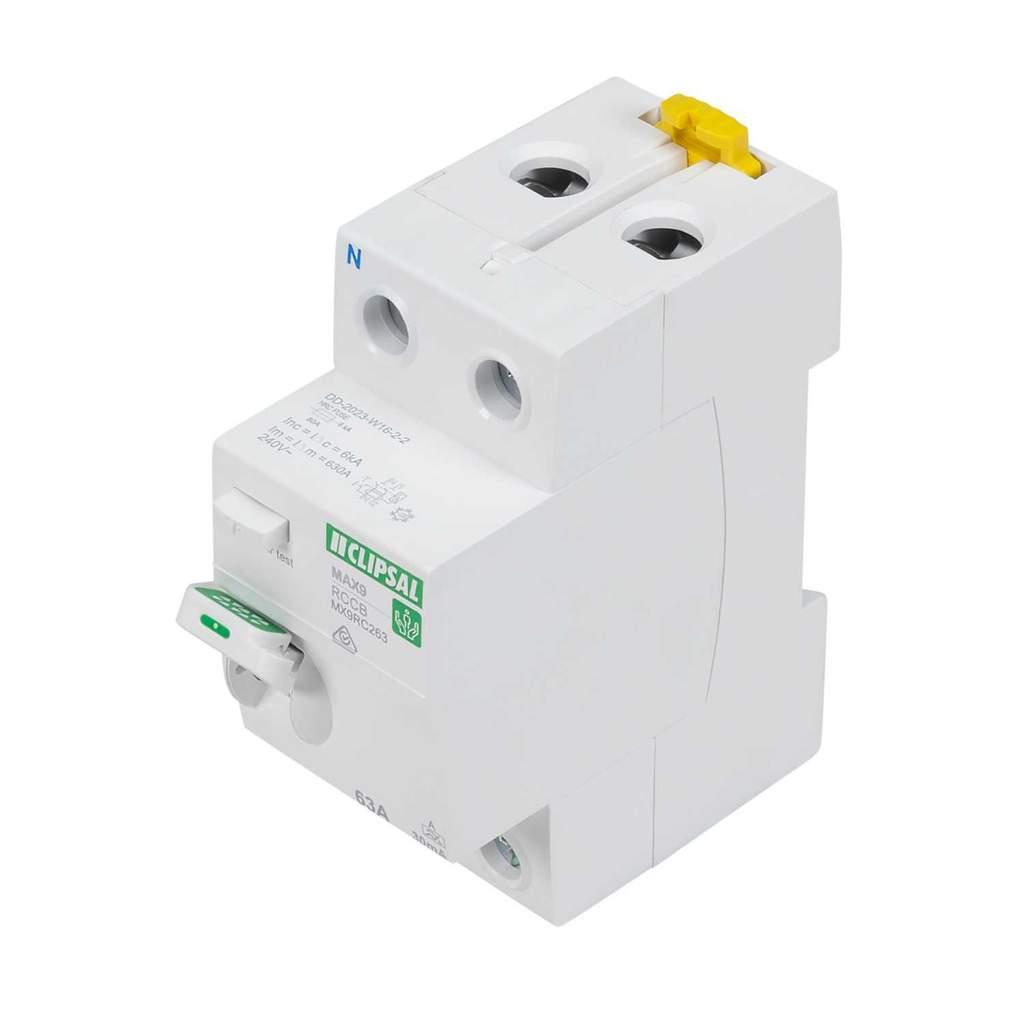

Clipsal 63A 2 Pole 30mA Type A MAX9 RCD
Part Number: MX9RC263
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 30mA RCD provides general personnel protection from earth faults
- Used for alternating sinusoidal residual current and for residual pulsating direct current up to 6mA
- Line and load can be top or bottom connected
- Lift-up terminals. helps to reduce chances of ‘hot spot’ in terminations with all cable strands are locked in
- Double locking clip for ease of installation or removal from MAXBAR
- Colour
- White/Green
- Current Rating
- 63A
- Depth
- 75mm
- Dimensions
- (H)85 mm x (W)36 mm x (D)75 mm
- Frequency
- 50 Hz
- Guarantee
- 7 Years
- Height
- 85mm
- Material
- Plastic
- Mounting
- Din Rail
- Number Of Modules
- 2
- Number Of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- MAX9
- Rcd Type
- A
- Standards
- IEC 61008-2-1 EN/IEC 61008-1
- Torque Settings
- 3.5 N m
- Tripping Sensitivity
- 30mA
- Type
- RCD
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 240V AC
- Weight
- 0.198kg
- Width
- 36mm
