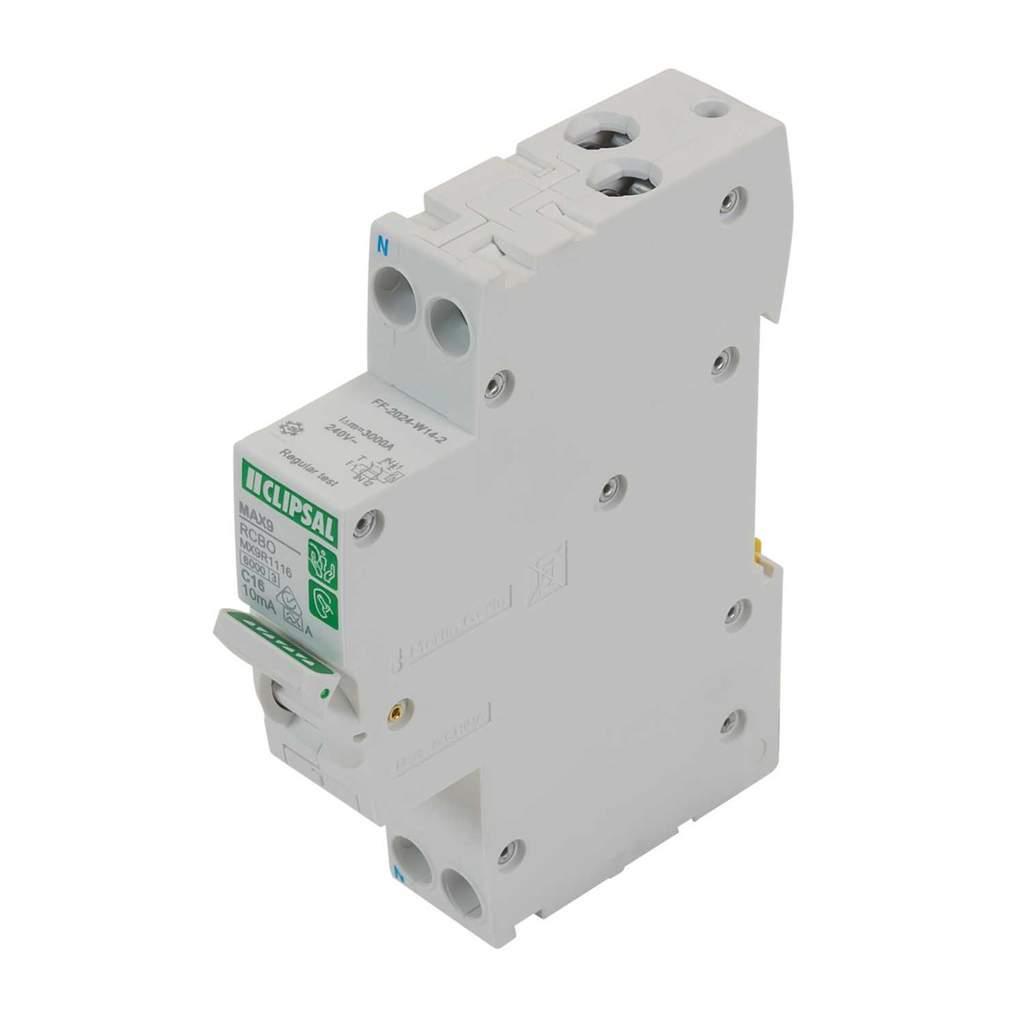

Clipsal 16A 1 Pole and Neutral 6kA C Curve 10mA MAX9 RCBO
Part Number: MX9R1116
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Combines the overcurrent functions of an MCB with the earth fault functions of an RCD in a single compact unit
- C curve MCB function for general light and power applications
- Type A 10mA RCD function provides protection for sensitive electronic and medical equipment
- Installation flexibility with the choice of line connection either from top or bottom
- Compatible with multiple types of screw-drivers with combination head screws
- Colour
- White/Green
- Current Rating
- 16A
- Depth
- 73mm
- Dimensions
- (H)93 mm x (W)18 mm x (D)73 mm
- Frequency
- 50/60 Hz
- Guarantee
- 7 Years
- Height
- 93mm
- IP Rating
- IP20
- Incoming Terminal Capacity
- 16mm²
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 1P N
- Operating Temperature Range
- -25 - 70°C
- Outgoing Terminal Capacity
- 10mm²
- Packaging Types
- Each
- Product Range
- MAX9
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- AS/NZS 61009.1 IEC 61009-2-2 EN/IEC 61009-1
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 10mA
- Type
- RCBO
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 240V AC
- Weight
- 0.14kg
- Width
- 18mm
