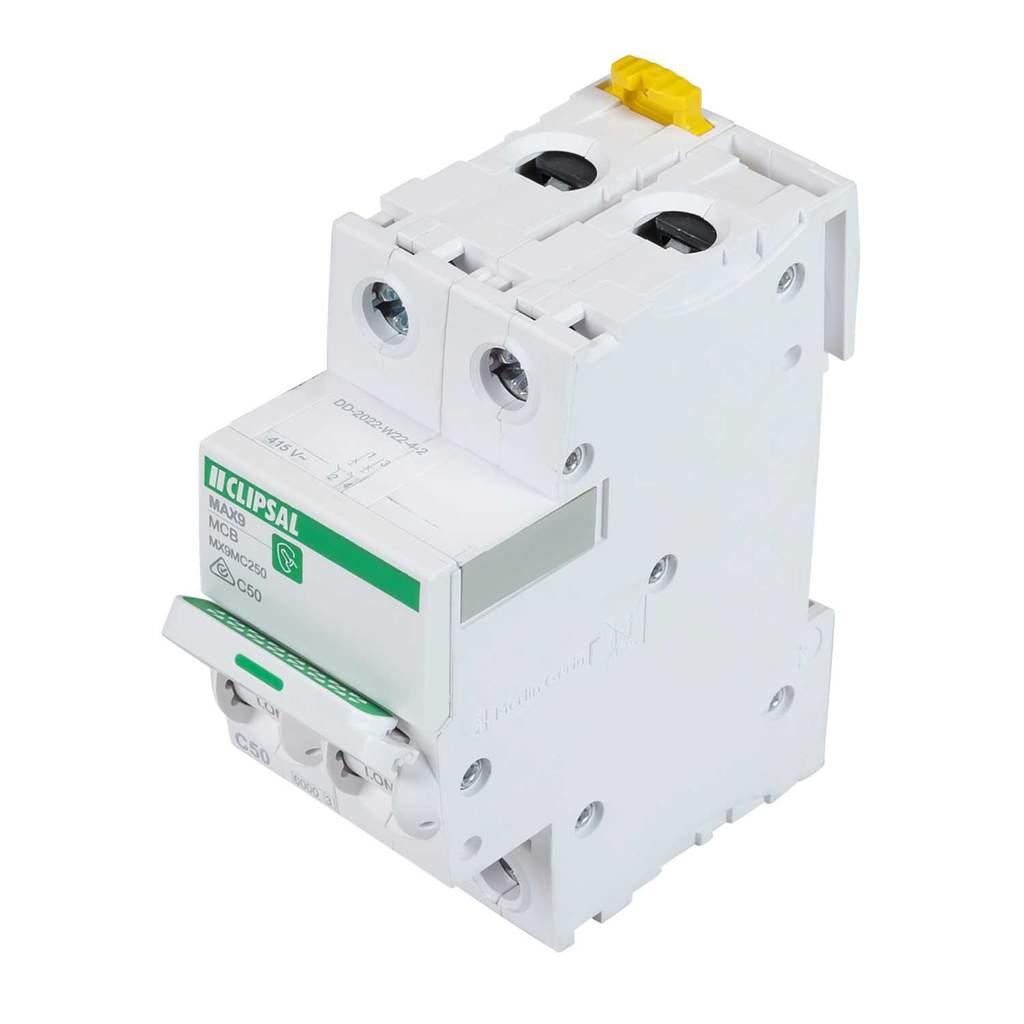

Clipsal 50A 2 Pole 6kA C Curve MAX9 MCB
Part Number: MX9MC250
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 2 pole miniature circuit breaker
- Thermal-magnetic tripping for overload and short circuit protection
- Installation flexibility with the choice of line connection either from top or bottom
- 3.5 N m tightening torque on top or bottom connections
- Provision for padlocking
- Colour
- White/Green
- Current Rating
- 10A
- Depth
- 75mm
- Dimensions
- (H)85 mm x (W)36 mm x (D)75 mm
- Frequency
- 50/60 Hz
- Guarantee
- 7 Years
- Height
- 85mm
- IP Rating
- IP20
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 2
- Number Of Poles
- 2 Pole
- Operating Temperature Range
- -25 - 70°C
- Packaging Types
- Each
- Product Range
- MAX9
- Short Circuit Rating
- 6kA
- Standards
- AS/NZS 60898.1
- Torque Settings
- 3.5 N m
- Tripping Characteristics
- C Curve
- Type
- MCB
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 415V AC
- Weight
- 0.257kg
- Width
- 36mm
