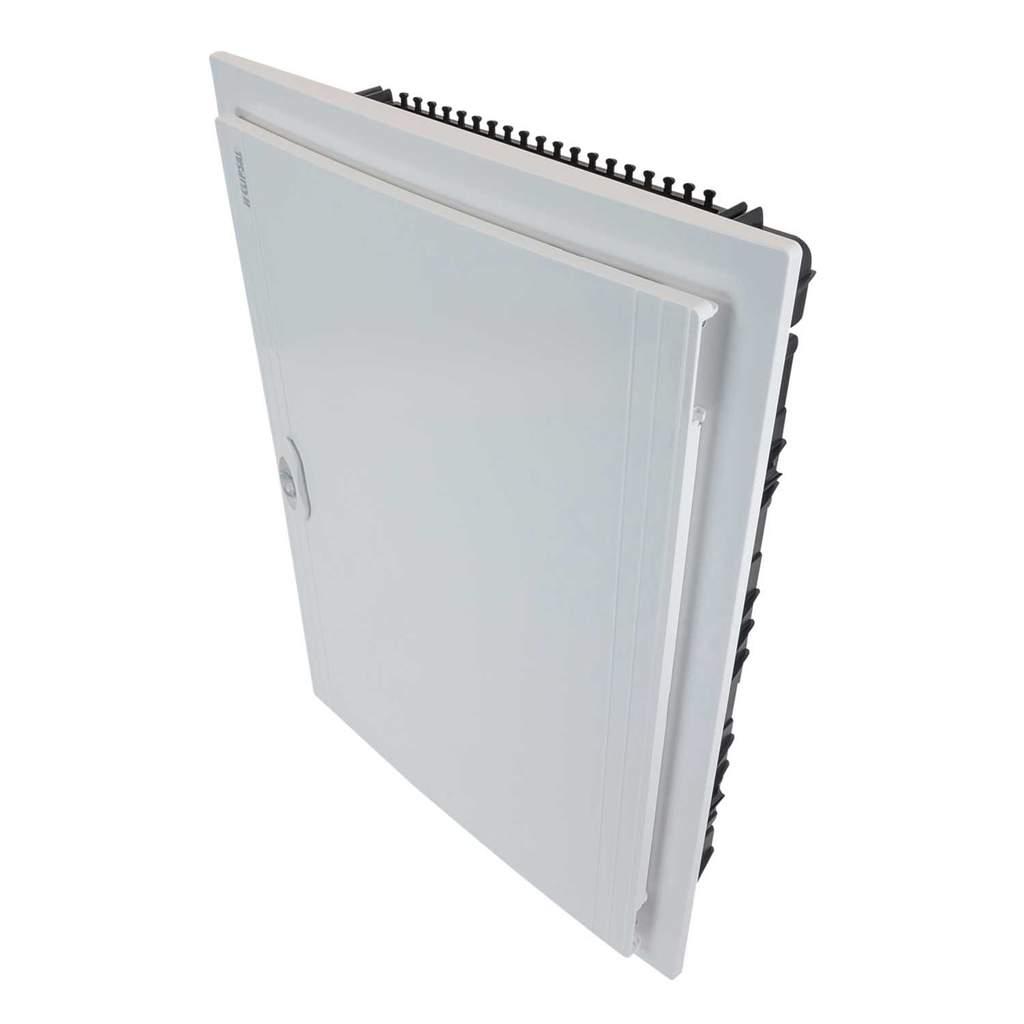

Clipsal 54 Way 3 Row Flush Mount Loadcentre MAX9 White
Part Number: MX9E3318F
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 54 module flush mounted switchboard enclosure
- 3 rows of 18 modules complete with DIN rail, earth bar, neutral bar, circuit identification label and blanking plate
- Removable DIN rail to help organise the cables in position before mounting the devices
- Earth and neutral terminals to suit typical configurations and comply to MEN type system
- Plastic back box helps to provide mechanical protection to cables
- Plain reversible door, IP40 when closed
- Multiple cable entry/exit knock-outs
- 100A rated
- Cable Entry
- Knockout Entries
- Colour
- White
- Compliance
- IK09
- Current Rating
- 100A
- Depth
- 128mm
- Dimensions
- (H)660 mm x (W)486 mm x (D)128 mm
- Guarantee
- 7 Years
- Height
- 660mm
- IP Rating
- IP40
- Material
- Plastic
- Mounting
- Flush
- Number Of Modules
- 54
- Packaging Types
- Each
- Product Range
- MAX9
- Standards
- AS/NZS 61439-3 AS/NZS 3000
- Type
- Loadcentre
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 240V AC 415V AC
- Weight
- 6.621kg
- Width
- 486mm
