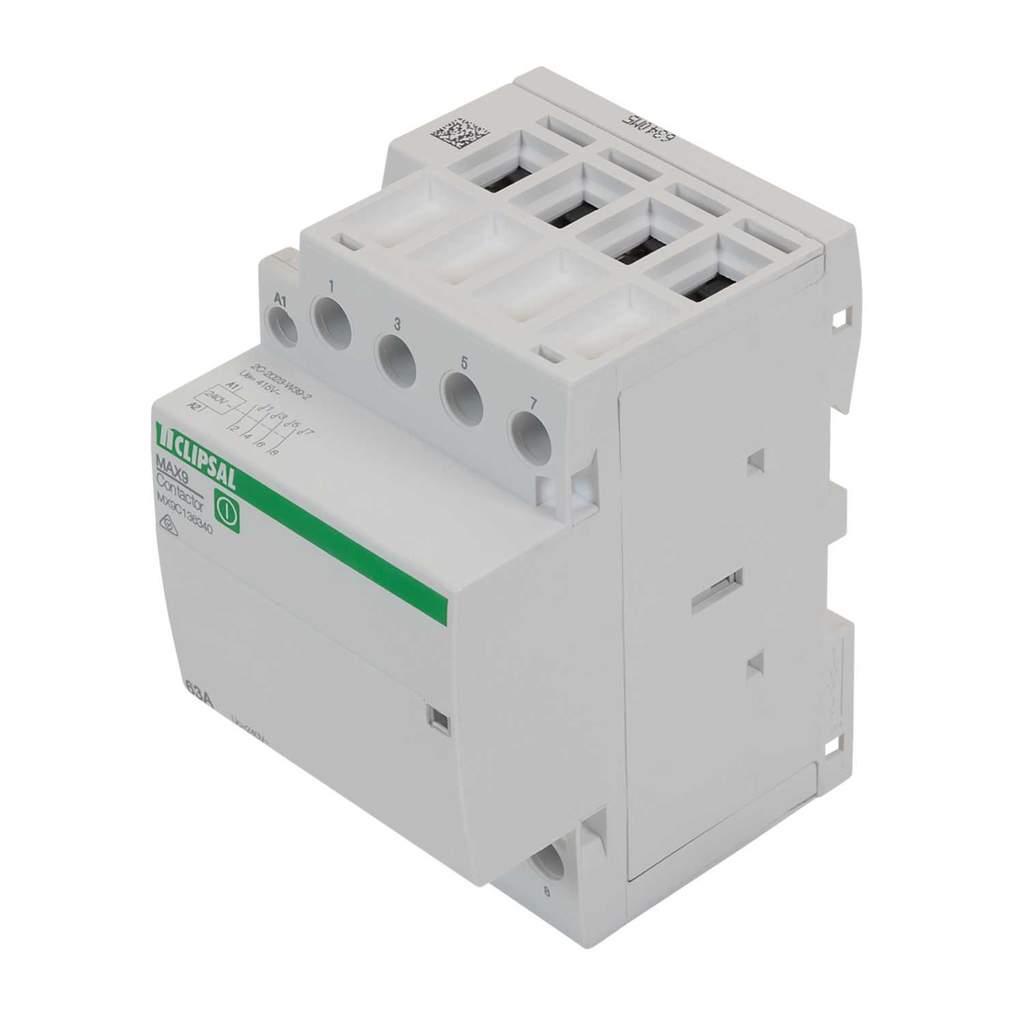

Clipsal 63A AC-7a 4NO 240V AC Coil 3 Module Max9 Contactor
Part Number: MX9C136340
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- MAX9 is targeted to the residential market, for individual and collective buildings
- Used for control circuits, remote switching small motors (fans, mixers) or HVAC system applications
- Current rating is 63A for AC-7a
- Rated operational voltage 240V AC, coil for control circuit 24V AC
- 4 normally open contacts
- Compatible with multiple types of screw-drivers with combination head screws
- Coil Voltage
- 240V AC
- Colour
- White
- Contact Configuration
- 4 NO
- Current Rating
- 63A
- Depth
- 63mm
- Dimensions
- (H)81 mm x (W)54 mm x (D)63 mm
- Frequency
- 50 Hz
- Guarantee
- 7 Years
- Height
- 81mm
- IP Rating
- IP20
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Poles
- 4 Pole
- Operating Temperature Range
- -5 - 70°C
- Packaging Types
- Each
- Product Range
- MAX9
- Standards
- IEC/EN 61095 IEC 60529
- Storage Temperature Range
- -40 - 70°C
- Type
- Contactor
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 415V AC
- Weight
- 0.361kg
- Width
- 54mm
