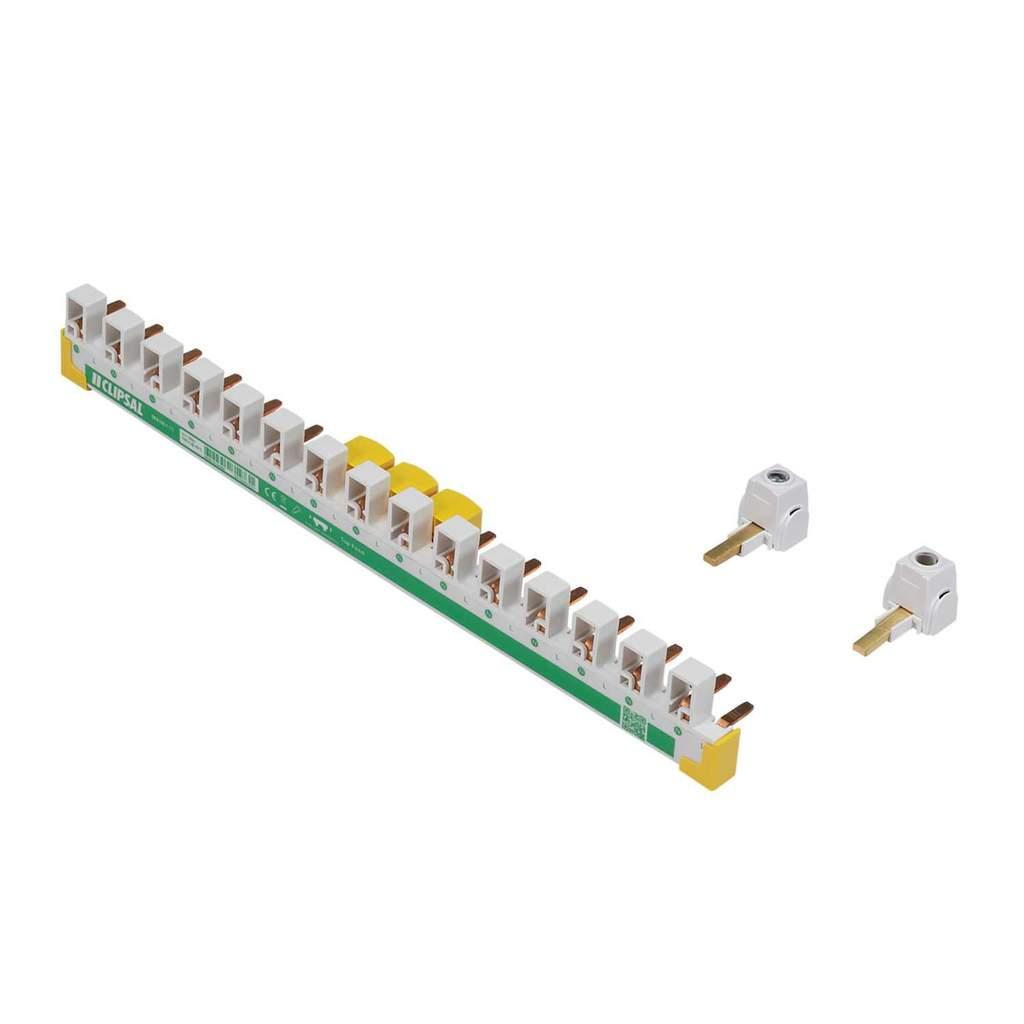

Clipsal 100A 15 Module 1 Pole and Neutral Top Feed MAXBAR
Part Number: MX9B115
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Single phase and neutral insulated busbar for installation in rows without main incomer in case of multi-row enclosures
- Allows a quicker install with no cables feeding the protective devices
- One busbar connects to main switch and all types of Clipsal MAX9 RCBOs, AFDDs and Resi MAX accessories
- Can be cut to have desired number of modules and must be insulated with end caps provided
- Colour
- White/Green
- Current Rating
- 100A
- Depth
- 26.5mm
- Dimensions
- (L)278 mm x (H)29.7 mm x (D)26.5 mm
- Guarantee
- 7 Years
- Height
- 29.7mm
- Insulated
- Yes
- Length
- 278mm
- Material
- Copper, Polyethylene
- Number Of Poles
- 1P N
- Number Of Ways
- 15
- Packaging Types
- Each
- Product Range
- MAX9
- Standards
- AS/NZS 61439-3 AS/NZS 3000
- Type
- Busbar
- Unspsc V18
- 39121117
- Unspsc V24
- 39121117
- Voltage Rating
- 230V AC
- Weight
- 0.16kg
