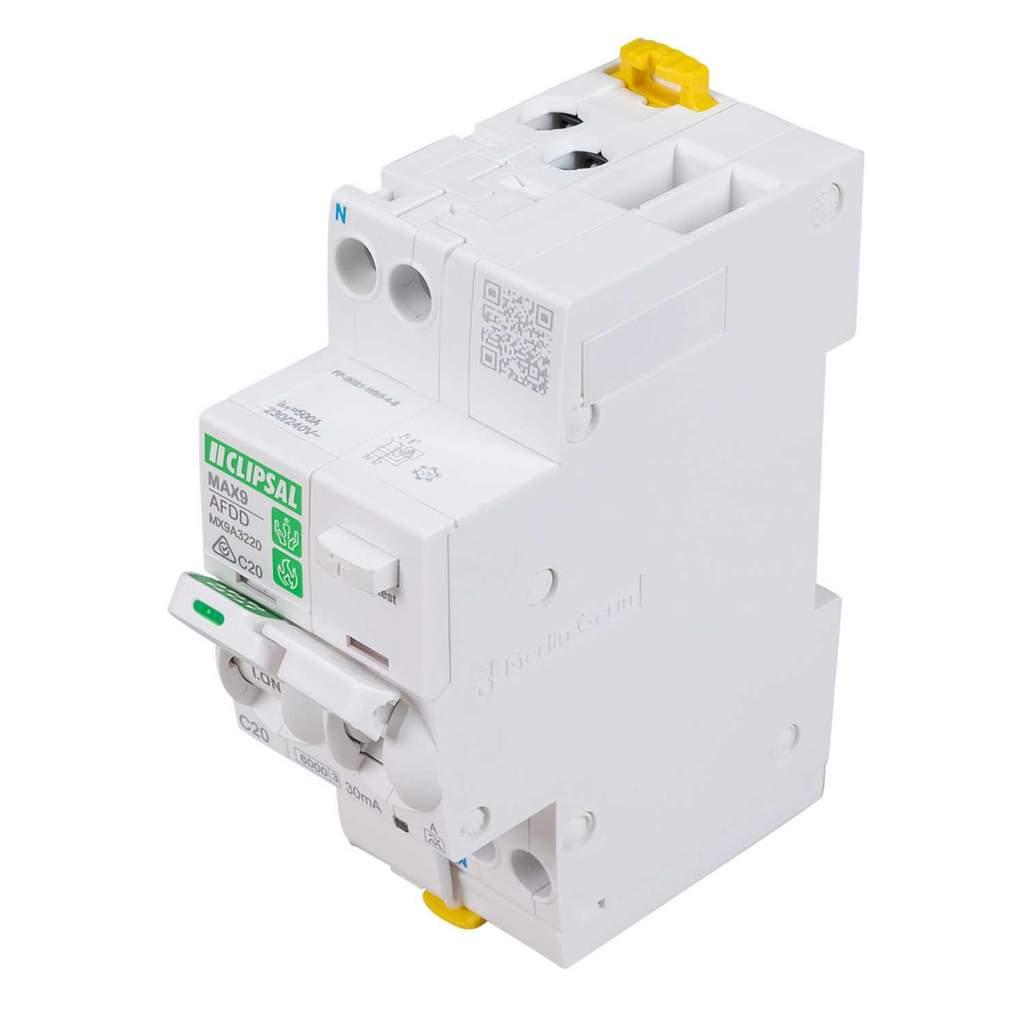

Clipsal 20A 1 Pole and Neutral 6kA 30mA C Curve MAX9 RCBO with Arc Fault Detection
Part Number: MX9A3220
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 2 module circuit protection against overload, short-circuit, earth leakage and arc fault
- AFDDs will detect arcing faults against the protective conductor and provide adequate fire protection where no RCD is used
- AFDD with miniature RCBO provides the highest levels of protection for the installation and its users
- Type A RCBO to sense both AC and pulsating DC currents
- Two pole safety feature allows switching of both active and neutral contacts
- Top and bottom line and load compatible for ease of installation
- Fire hazard tripping indication via the front panel indicator
- Device diagnosis via the test button
- Works with TN-S, TT and IT earthing systems
- Colour
- White/Green
- Current Rating
- 20A
- Depth
- 75mm
- Dimensions
- (H)91 mm x (W)36 mm x (D)75 mm
- Frequency
- 50 Hz
- Guarantee
- 7 Years
- Height
- 91mm
- IP Rating
- IP20
- Incoming Terminal Capacity
- 16mm²
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 2
- Number Of Poles
- 1P N
- Outgoing Terminal Capacity
- 16mm²
- Packaging Types
- Each
- Product Range
- MAX9
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- AS/NZS 61009.1 EN/IEC 62606
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 30mA
- Type
- RCBO AFDD
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 240V AC
- Weight
- 0.206kg
- Width
- 36mm
