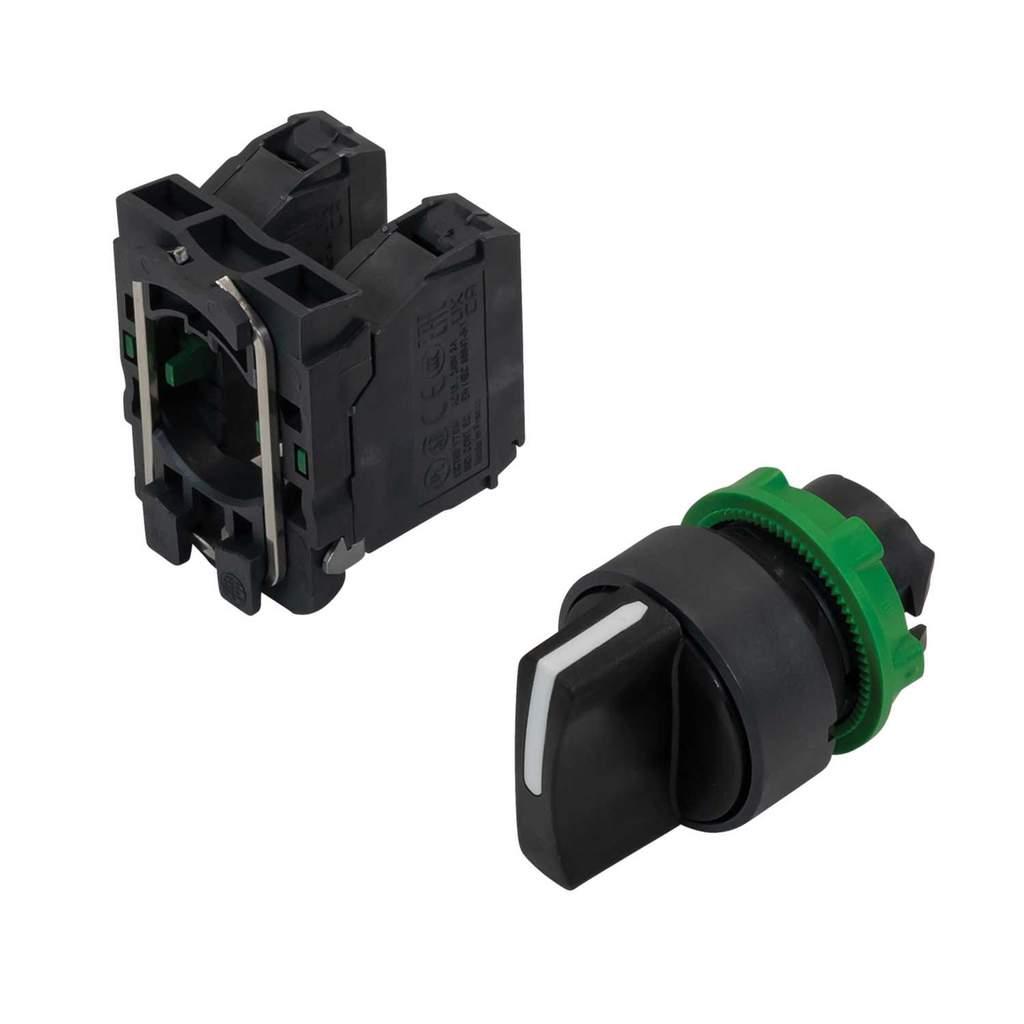

Schneider Harmony XB5 3 Position 2NO Stay Put Selector Switch Black
Part Number: XB5AD33
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 position switch with maintained mechanism
- Black standard handle with a dark grey plastic bezel
- Plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation
- 2 normally open slow break contacts
- Easily installed into standard 22.5mm diameter cut-outs and connected to control circuits with simple screw-clamp connections
- Impact, dust, water and vibration resistant
- Colour
- Black
- Contact Configuration
- 2 NO
- Cut Out
- 22.5mm
- Depth
- 70mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)30 mm x (D)70 mm
- Guarantee
- 18 Months
- Head Type
- Standard
- Ip Rating
- IP69
- Legend
- None
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Number Of Positions
- 3
- Operation Type
- Stay Put
- Packaging Types
- Each
- Product Range
- Harmony XB5
- Standards
- IEC 60947-1 IEC 60947-5-4 IEC 60947-5-1 JIS C8201-5-1 UL 508 CSA C22.2 No 14 JIS C8201-1
- Storage Temperature Range
- -40 - 70°C
- Supplied With
- Fixing Collar and Contact Blocks
- Type
- Selector Switch
- Weight
- 0.053kg
- Width
- 30mm
