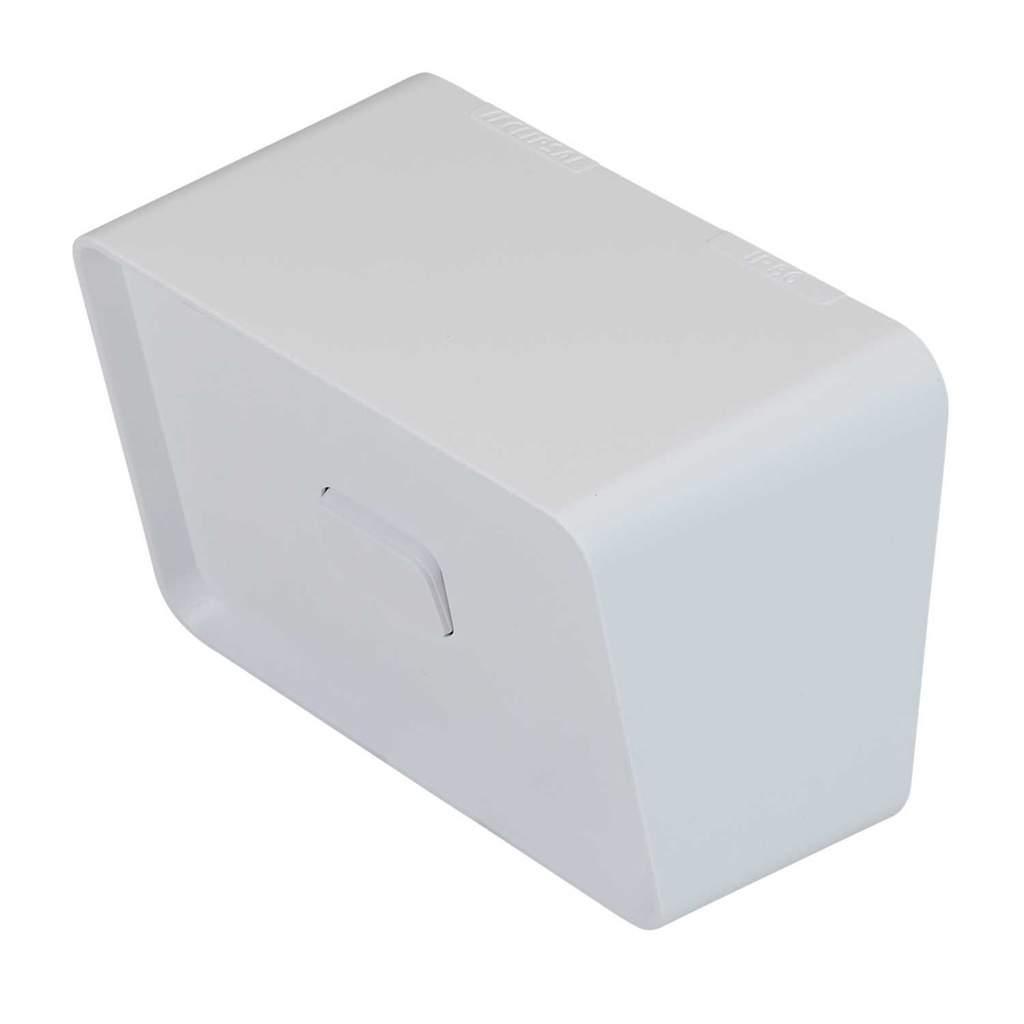

Clipsal 1 Gang Horizontal Switch 20A IP56 Iconic Outdoor Extra White
Part Number: O3041HA-XW
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Single exterior horizontal mounted switch suitable for applications such as zone 2 wet areas
- Bevelled edges are made to deflect impacts and prevent the build-up of dirt
- Seals are built into the frame of all conduit entries
- Punch out drain to minimise water build up
- 16A rated for fluorescent and inductive loads
- Colour
- White
- Current Rating
- 20A
- Depth
- 70mm
- Dimensions
- (H)85 mm x (W)115.5 mm x (D)70 mm
- Finish
- Matt Finish
- Fixing Centres
- 98mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 85mm
- IP Rating
- IP56
- Material
- ABS
- Mounting
- Surface
- Number Of Gangs
- 1
- Number Of Poles
- 1 Pole
- Number Of Terminals
- 3
- Number Of Ways
- 2
- Packaging Types
- Each
- Product Range
- Iconic Outdoor
- Shape
- Rectangular
- Standards
- AS/NZS 3133
- Terminal Capacity Live Neutral
- 4 x 1.5mm² 3 x 2.5mm²
- Type
- Weatherproof Switch
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 250V AC
- Weight
- 0.199kg
- Width
- 115.5mm
