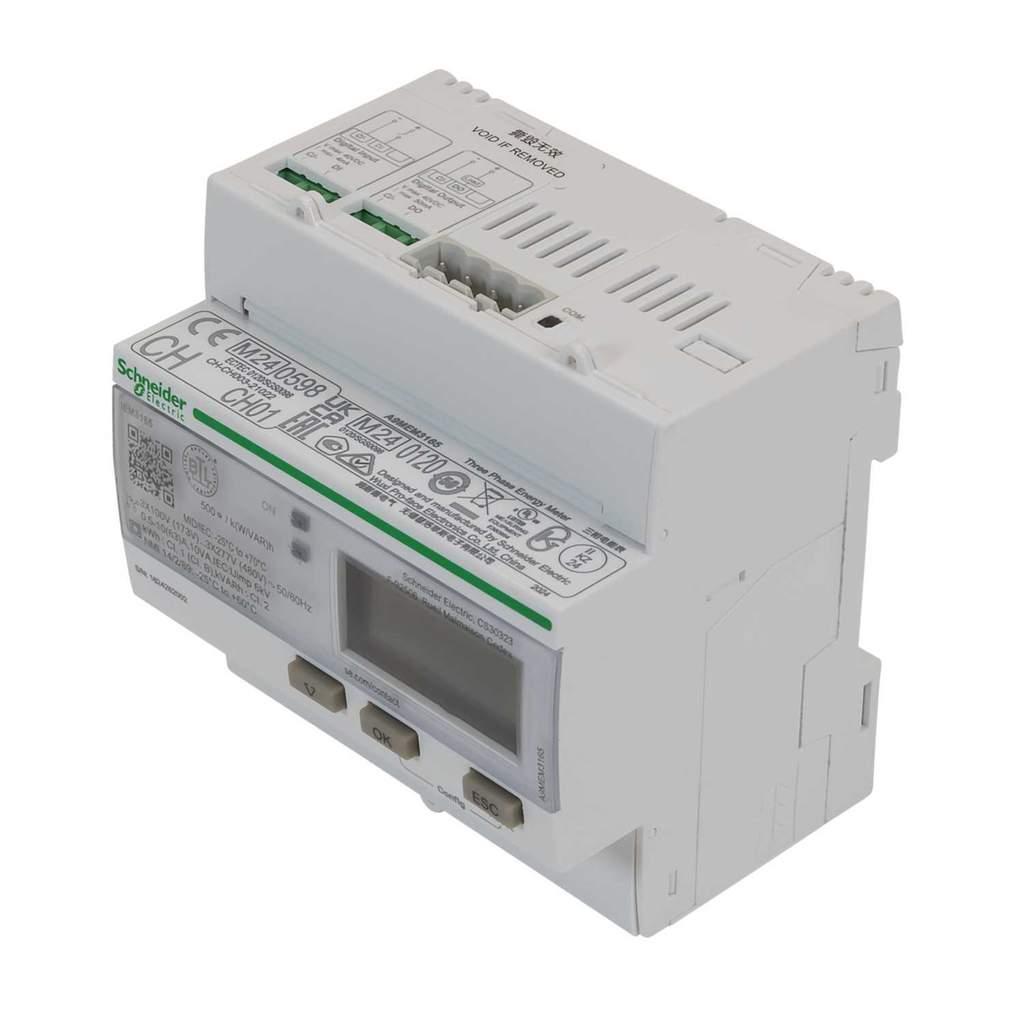

Schneider 63A BACnet Multi Tariff MID Energy Meter
Part Number: A9MEM3165
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- BACnet protocol
- Feature-rich energy metering
- Simple energy monitoring compatible with building management systems
- Optimise energy consumption and enable energy efficiency practices
- 1 x digital input, 1 x digital output
- Direct connection
- Single phase voltage range 100 - 277V AC
- Three phase voltage range 173 - 480V AC
- Colour
- White/Green
- Current Rating
- 63A
- Depth
- 69mm
- Dimensions
- (H)95 mm x (W)90 mm x (D)69 mm
- Guarantee
- 18 Months
- Height
- 95mm
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 5
- Number Of Poles
- 3P+N
- Packaging Types
- Each
- Product Range
- Acti9
- Standards
- IEC 61557-12:2021 IEC 61326-1 IEC 62052-11:2020 IEC 62053-21 IEC 62053-23:2020 IEC 62052-31:2015 IEC 61010-1:2010 IEC 61010-2-30
- Type
- Energy Meter
- Weight
- 0.46kg
- Width
- 90mm
