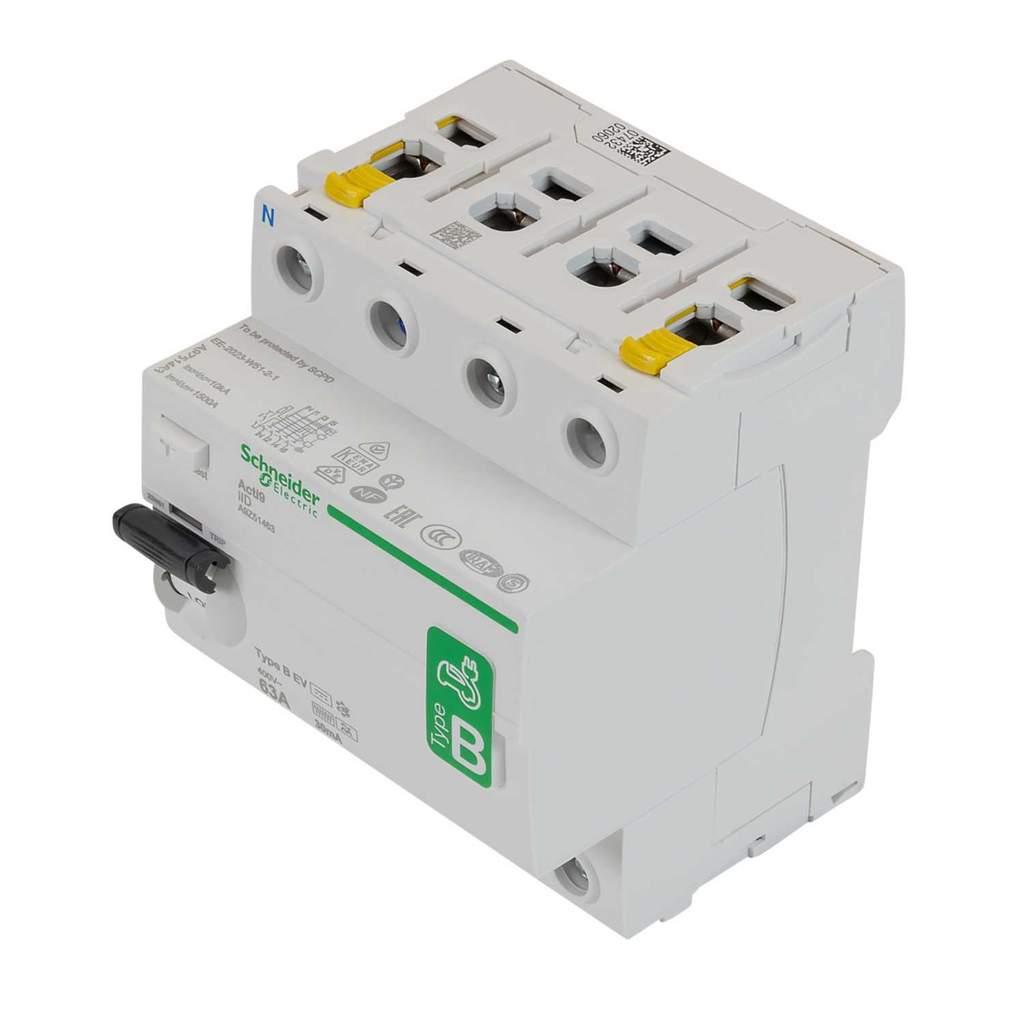

Schneider 63A 4 Pole 30mA Type B Acti9 ilD RCD
Part Number: A9Z51463
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Recognises all types of AC and DC residual currents
- VISI-SAFE for safe operation and maintenance work
- Class-2 insulation
- VisiTrip detects faulty outgoers quickly and reduces intervention time
- Fully immune earth leakage protection
- For use with electric vehicle charging
- Colour
- White/Green
- Current Rating
- 63A
- Depth
- 79mm
- Dimensions
- (H)88 mm x (W)72 mm x (D)79 mm
- Frequency
- 50 Hz
- Guarantee
- 18 Months
- Height
- 88mm
- Incoming Terminal Capacity
- 35mm² Rigid, 25mm² Flexible
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 4
- Number Of Poles
- 4 Pole
- Operating Temperature Range
- -25-60°C
- Packaging Types
- Each
- Product Range
- Acti9 ilD
- Rcd Type
- B
- Short Circuit Rating
- 10kA
- Standards
- IEC 61008-1 IEC 61008-2-1 IEC 62423 IEC 61543 VDE 0664
- Torque Settings
- 3.5 N m
- Tripping Sensitivity
- 30mA
- Type
- RCD
- Voltage Rating
- 415V AC
- Weight
- 0.43kg
- Width
- 72mm
