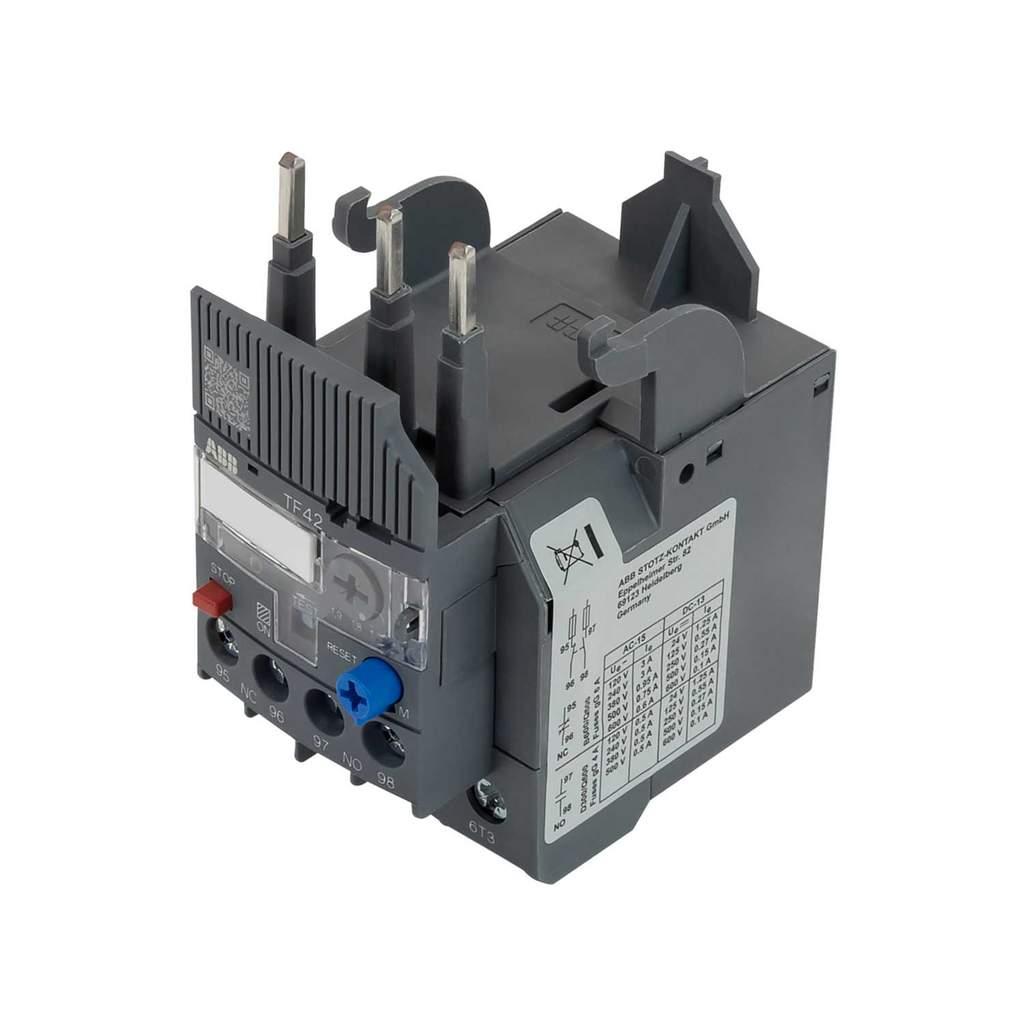

ABB 1.7 to 2.3A TF42 Thermal Overload Relay
Part Number: TF42-2.3
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Self-supplied electromechanical overload relay, connected directly to the contactor which means no extra external supply is needed
- Trip class 10/10A
- Adjustable current setting ranges
- Overload protection with phase loss sensitivity
- Temperature compensation up to 60°C
- Automatic or manual reset
- Suitable for single and three phase applications
- Suitable for AF09, AF12, AF16, AF26, AF30 and AF38 contactors
- Colour
- Grey
- Depth
- 70.5mm
- Dimensions
- (H)88.3 mm x (W)45 mm x (D)70.5 mm
- Guarantee
- 1 Year
- Height
- 88.3mm
- Material
- Plastic
- Mounting
- Bottom
- Number Of Pins
- 3
- Operating Temperature Range
- -25 - 60°C
- Overload Rating
- 1.7 - 2.3A
- Packaging Types
- Each
- Product Range
- TF
- Standards
- EN 60947-1 EN 60947-4-1 EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
- Torque Settings
- 2.5 N m
- Type
- Thermal Overload Relay
- Unspsc V18
- 39122330
- Unspsc V24
- 39122330
- Weight
- 0.13kg
- Width
- 45mm
