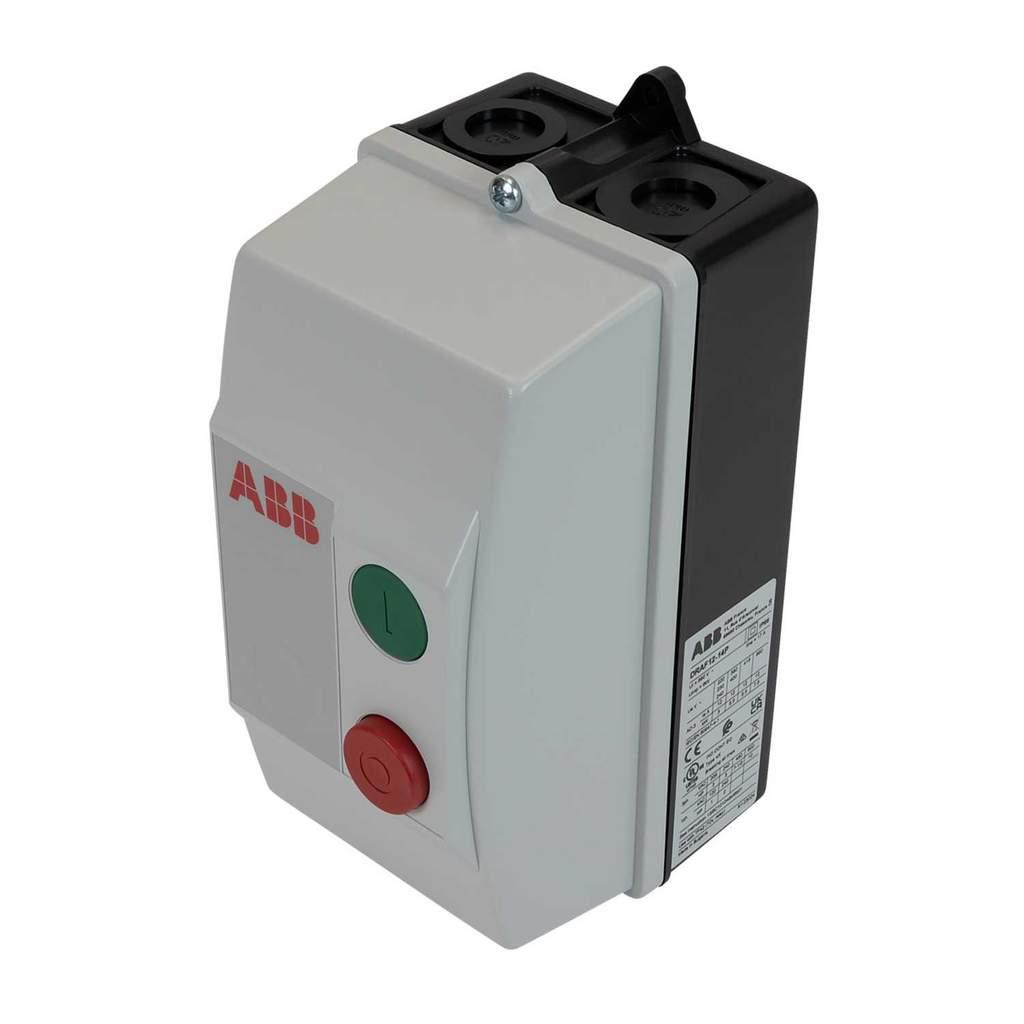

ABB 5.5kW AC3 250-500 VAC Coil DOL Starter
Part Number: DRAF12-14P
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Enclosed Direct-On-Line starter with an AF contactor used for controlling 3-phase asynchronous motors up to 690 V AC
- Delivered assembled and wired
- AF09-30-10-14, 3NO contactor with 1NO auxiliary contact
- 250-500 VAC coil
- IP66 and Type 4X double insulated plastic enclosure
- 4 x cable inlets and outlets via knockouts
- TF42 thermal overload relay to be ordered separately and chosen according to motor's nominal current
- Button Configuration
- Start / Stop
- Coil Voltage
- 250V AC
- Colour
- Grey
- Depth
- 131mm
- Dimensions
- (H)230 mm x (W)107 mm x (D)131 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 230mm
- IP Rating
- IP66
- Material
- Plastic
- Mounting
- Surface
- Number Of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- DRAF
- Standards
- IEC 60947-4-1 IEC 60529
- Type
- DOL Starter
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 690V AC
- Weight
- 0.774kg
- Width
- 107mm
- kW Rating
- 5.5kW
