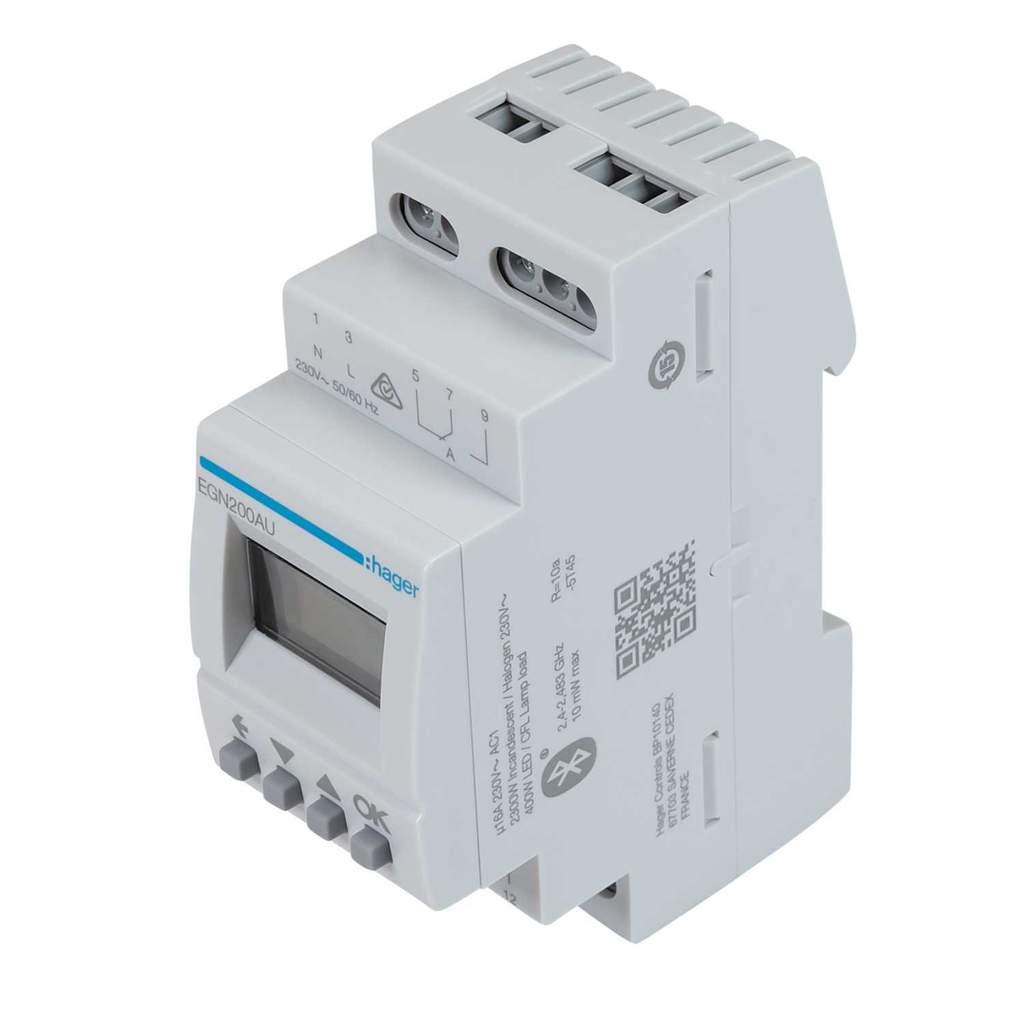

Hager 2 Channel Multifunction Bluetooth Time Switch
Part Number: EGN200AU
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- DIN rail mounted, digital multifunctional time switch
- Integrated Bluetooth connection
- Program cycles: daily, weekly, yearly
- 2 changeover outputs
- Pulse function
- Automatic summer/winter time change (astro mode)
- Max incandescent and halogen load 2300w
- Max LED load 400w
- Max compact fluorescent load 400w
- 10 years power reserve
- Battery Back Up
- Yes
- Changeover
- Yes
- Colour
- Grey
- Contact Configuration
- 2 CO
- Depth
- 61.8mm
- Dimensions
- (H)90 mm x (W)35.8 mm x (D)61.8 mm
- Frequency
- 50/60 Hz
- Guarantee
- 2 Years
- Height
- 90mm
- Material
- Plastic
- Maximum Operating Temperature
- 45°C
- Minimum Operating Temperature
- -5°C
- Minimum Time Settings
- 1min
- Mounting
- DIN Rail
- Number Of Channels
- 2
- Number Of Modules
- 2
- Operation Type
- Timer
- Packaging Types
- Each
- Product Range
- Time Switches
- Standards
- EN IEC 63000:2018 EN 50663:2017 (RED Art 3.1a) EN 60730-2-7:2010 AC:2011 (RED Art 3.1a & 3.1b) EN IEC 60730-2-7:2020 (RED Art 3.1a & 3.1b) EN 300328 V2.2.2 (RED Art 3.2) EN 301489-17 V3.2.4 (
- Type
- Multifunction Timer
- Unspsc V18
- 39121523
- Unspsc V24
- 39121523
- Voltage Rating
- 230V AC
- Weight
- 0.133kg
- Width
- 35.8mm
