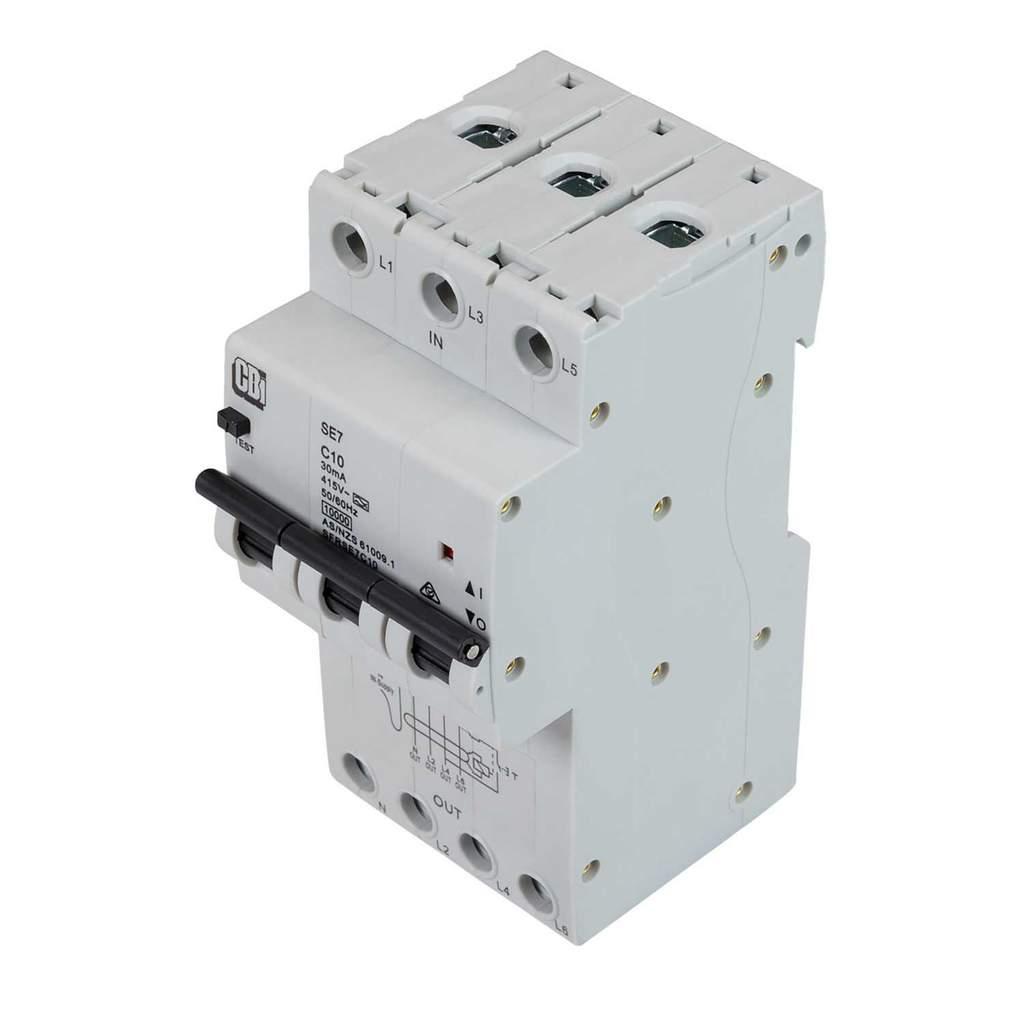

CBi-electric 10A 3 Pole and Neutral 10kA C Curve 30mA SFRSE7 RCBO
Part Number: SFRSE7C10
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Combines the overcurrent functions of an MCB with the earth fault functions of an RCD in a single compact unit
- Three phase RCBO (electronic), top line bottom load, type A RCD function
- Solid neutral
- Provides protection in the event of direct/indirect contact by the human body
- Provides comprehensive protection to residential and commercial distribution systems
- Provides protection against insulation failure
- Operate with or without built-in neutral lead
- AS/NZS 61009.1 compliant
- Handle is sealable and padlockable (with padlock attachment)
- Colour
- Grey
- Current Rating
- 10A
- Depth
- 77.2mm
- Dimensions
- (H)112 mm x (W)53.4 mm x (D)77.2 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 112mm
- IP Rating
- IP20
- Incoming Terminal Capacity
- 25mm²
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 3
- Number Of Poles
- 3P N
- Outgoing Terminal Capacity
- 25mm²
- Packaging Types
- Each
- Product Range
- SFR
- Rcd Type
- A
- Short Circuit Rating
- 10kA
- Standards
- AS/NZS 61009.1
- Torque Settings
- 2.5 N m
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 30mA
- Type
- RCBO
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 415V AC
- Weight
- 0.461kg
- Width
- 53.4mm
