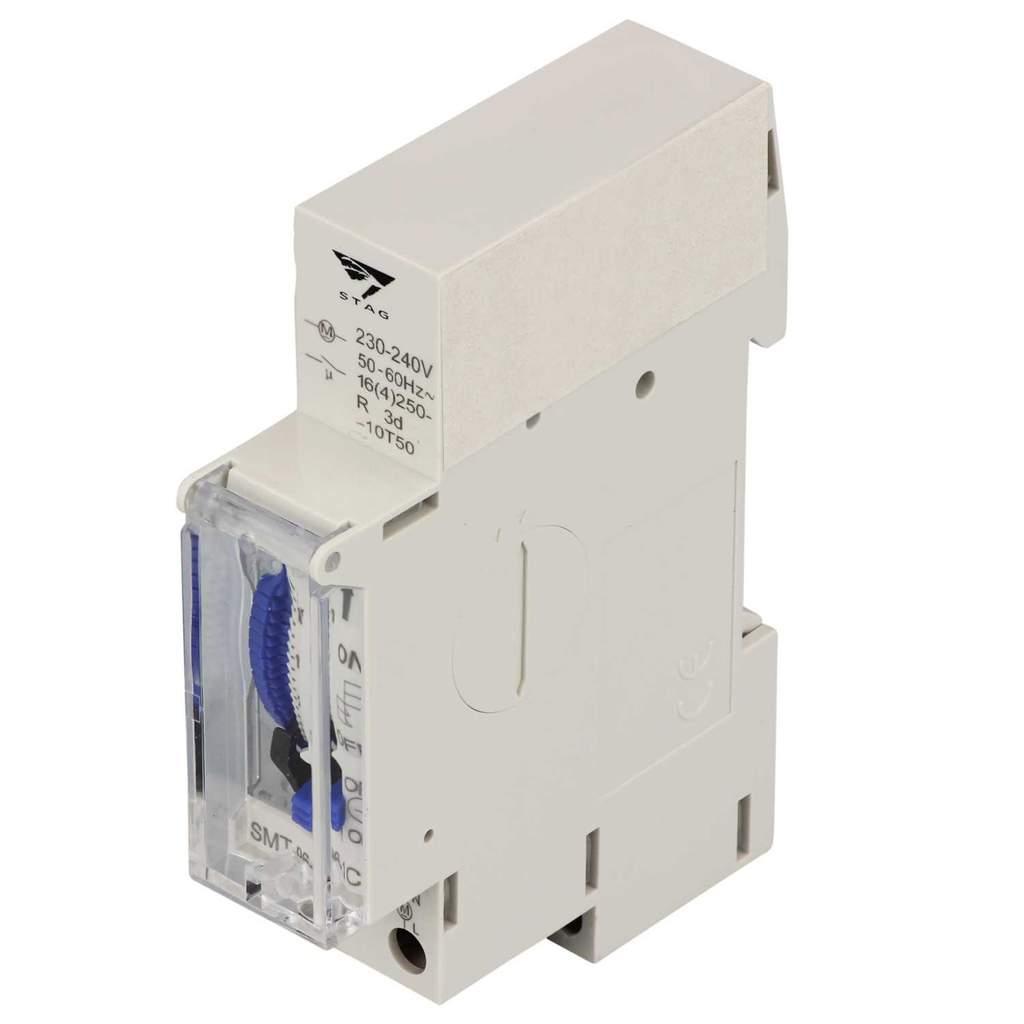

IMO 16A 24Hour Mechanical Battery Reserve Timer
Part Number: SMT-96-1C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Single channel 16A (resistive load) timer
- Up to 96 switching segments based over a 24 hour period
- Daily programme (ON / AUTO / Continuous OFF)
- Manual switch with 3 positions
- DIN rail mount
- 72 hour rechargeable battery backup (3 days)
- Battery Back Up
- Yes
- Battery Life
- 72h
- Colour
- Grey
- Current Rating
- 16A
- Current Rating Inductive
- 4A
- Depth
- 66.65mm
- Dimensions
- (H)92.75 mm x (W)18 mm x (D)66.65 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 92.75mm
- Manual Override
- Yes
- Material
- Self-Extinguishing Thermoplastic
- Minimum Switching Time
- 15min
- Mounting
- DIN Rail
- Number Of Channels
- 1
- Number Of Modules
- 1
- Packaging Types
- Each
- Product Range
- DIN Rail Mount Timers
- Standards
- EN 60730-1 CE
- Switching Time
- 15min
- Type
- Time switch
- Unspsc V18
- 39122208
- Unspsc V24
- 39122208
- Voltage Rating
- 240V AC
- Weight
- 0.1kg
- Width
- 18mm
