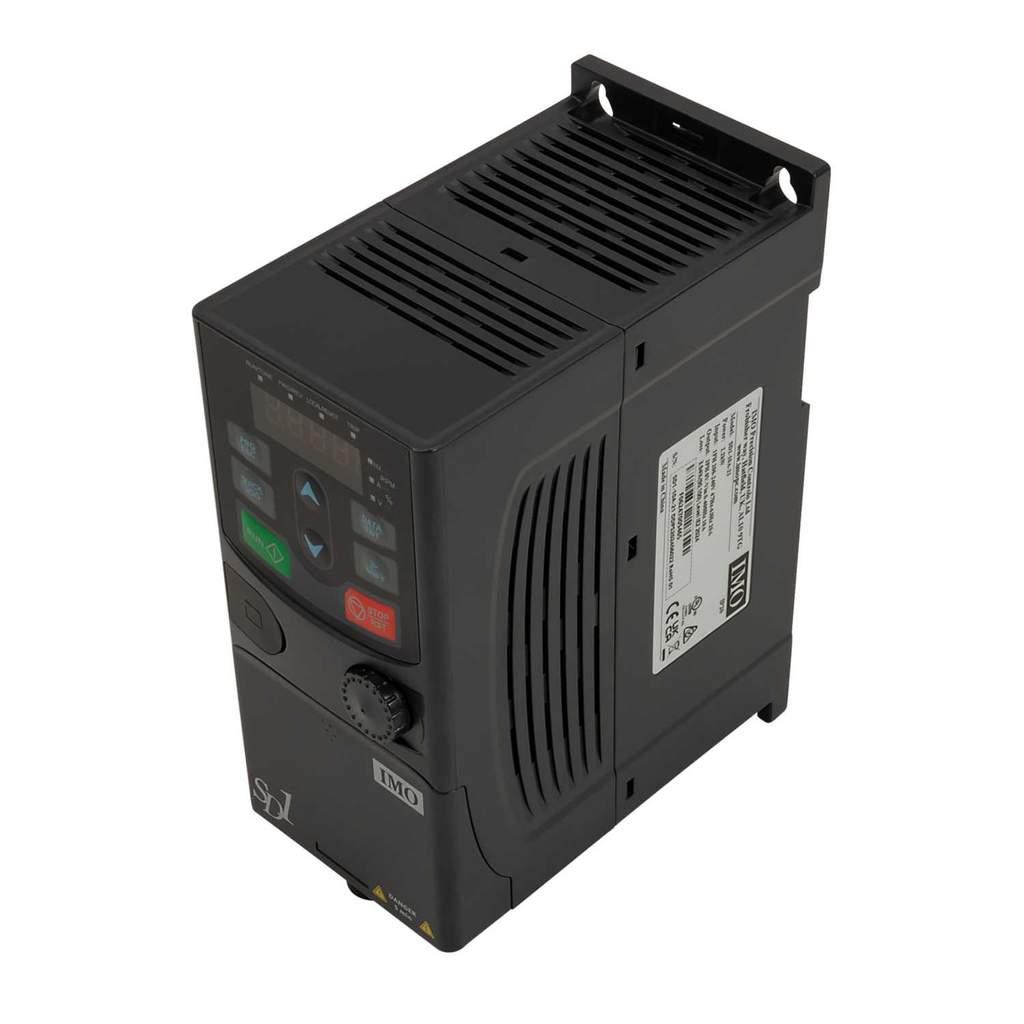

IMO SD1 2.2kW 200-240V AC 1 Phase Variable Speed Drive
Part Number: SD1-10A-21
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- For use with 1-phase motors
- Multi-function LED display and status
- External keypad connection port
- Analogue potentiometer
- Safe torque off (STO)
- Optional EMC filter
- Depth
- 167mm
- Dimensions
- (H)256 mm x (W)146 mm x (D)167 mm
- Frequency
- 50/60 Hz
- Guarantee
- 3 Years
- Height
- 256mm
- IP Rating
- IP20
- Material
- Plastic
- Mounting
- Surface
- Number Of Phases
- 1
- Packaging Types
- Each
- Power Rating
- 2.2kW
- Product Range
- SD1
- Standards
- EN 61800-3:2004 A1:2012 EN 61800-5-1:2007
- Type
- Variable Speed Drive
- Unspsc V18
- 39122002
- Unspsc V24
- 39122002
- Voltage Range
- 200 - 240V AC
- Weight
- 1.39kg
- Width
- 146mm
