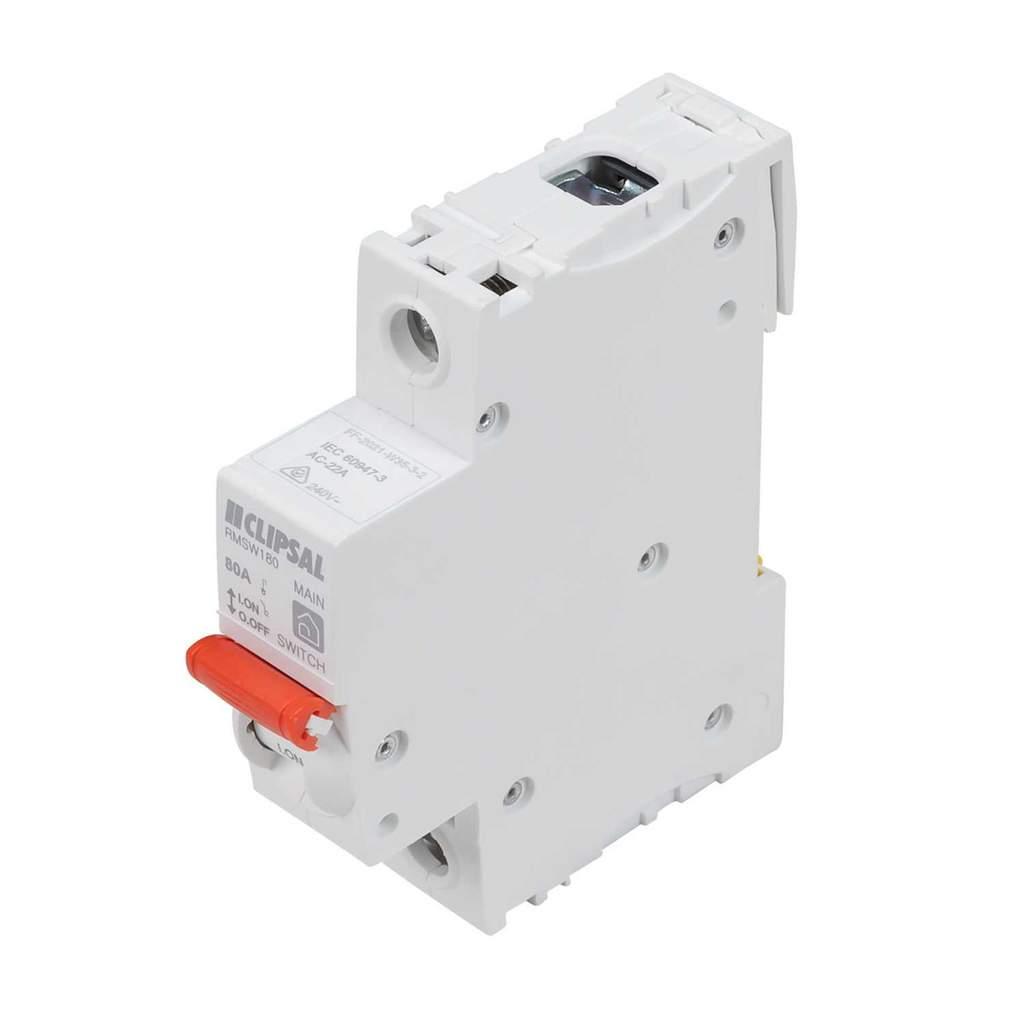

Clipsal 80A 1 Pole Red Toggle Resi MAX Main Switch
Part Number: RMSW180
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Modular, single phase switch disconnector
- Green strip on toggle indicates full opening of the poles
- Cable automatically guided to the correct position, terminals with guard
- Colour
- White
- Current Rating
- 80A
- Depth
- 75.5mm
- Dimensions
- (H)81 mm x (W)18 mm x (D)75.5 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 81mm
- IP Rating
- IP20
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 1
- Number Of Poles
- 1 Pole
- Packaging Types
- Each
- Product Range
- Resi MAX
- Short Circuit Rating
- 10kA
- Standards
- AS/NZS 60947-3
- Terminal Capacity
- 50mm²
- Type
- Main Switch
- Unspsc V18
- 39122233
- Unspsc V24
- 39122233
- Voltage Rating
- 250V AC
- Weight
- 0.084kg
- Width
- 18mm
