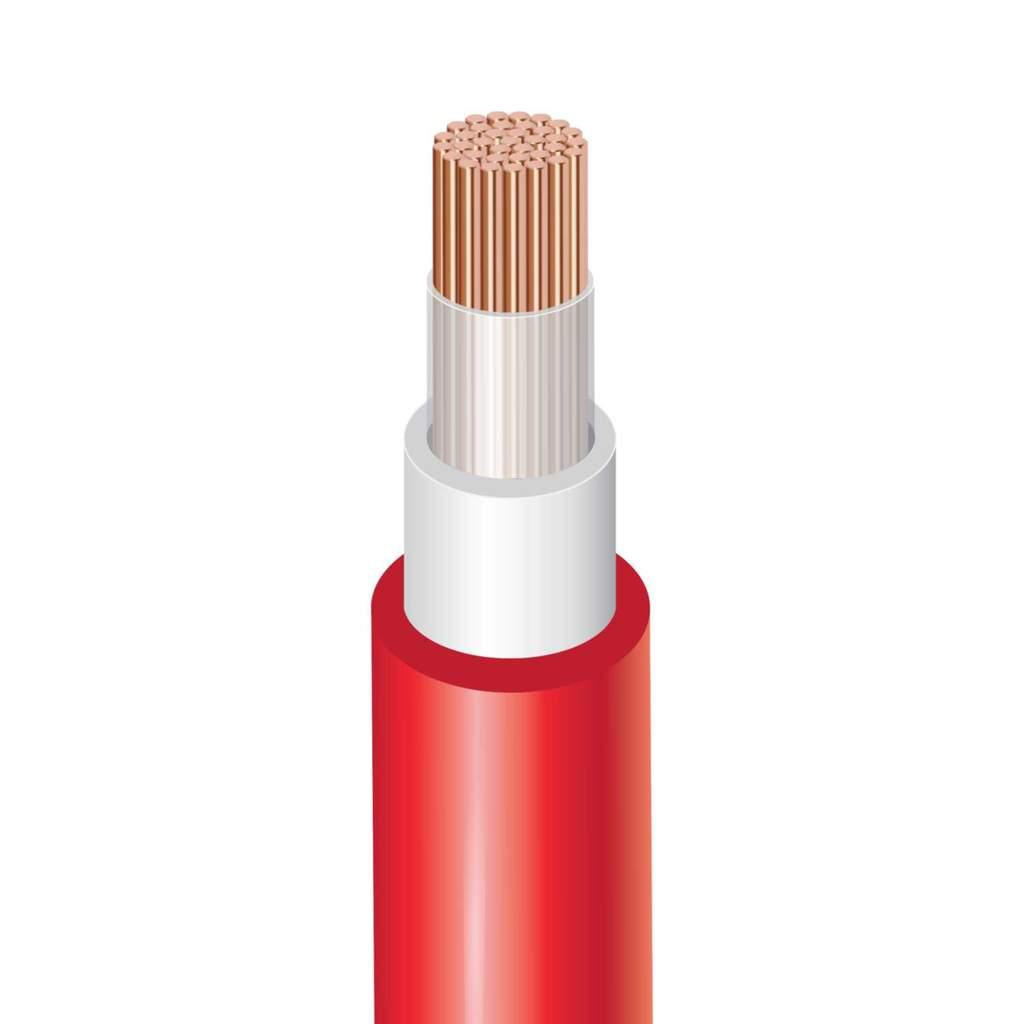

Electra 95mm² Single Core Fire Rated 110° Flex Red (100m Drum)
Part Number: FRF1950-BRD
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Flame retardant cable for mains, submains and the fire protection industry
- Flexible low smoke, halogen free, low toxicity and non-corrosive emission
- Mica glass tape barrier
- 2 hour fire rated
- Plain annealed copper (Class 5 of IEC60228)
- Greenstar approved
- Colour
- Red
- Conductor Class
- 5
- Conductor Size
- 95mm²
- Dimensions
- (L)100 m
- External Diameter
- 19.4mm
- Finish
- Plain Annealed
- Flame Retardent
- Yes
- Guarantee
- 1 Year
- Insulation Material
- X-HF-110
- Length
- 100m
- Material
- Copper
- Number Of Cores
- 1
- Packaging Types
- Drum
- Previously Known As
- FRF1950-RED
- Product Range
- FRF
- Sheath
- HFS-110-TP
- Sheath Thickness
- 1.6mm
- Standards
- AS/NZS 3013:2005 - WS52W IEC 60332-3 AS/NZS 1660.5.3 AS/NZS1660.5.4 AS/NZS 1660.5.1 AS/NZS 1660.5.2 AS/NZS 5000.1 AS/NZS3808 AS/NZS1125
- Type
- Fire Rated Flex
- Weight
- 1.015kg
