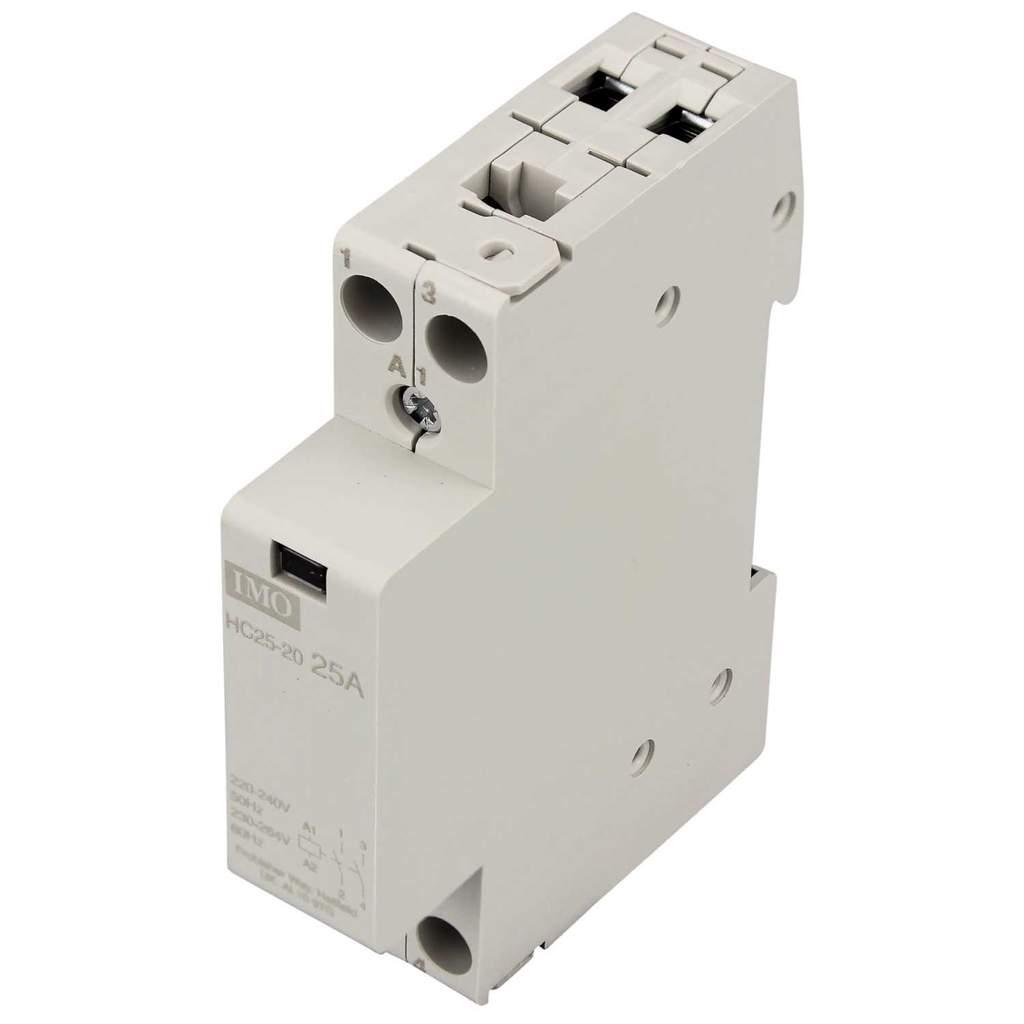

IMO 25A AC1 230V AC Coil 2 Pole (2NO) DIN Mounted Contactor
Part Number: CR46C
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Suitable for control of lamps heating air conditioning and motor control
- DIN or panel mounting
- High quality long life silver alloy contacts
- Low noise operation
- Flame retardant construction
- Single module
- IMO model number HC25-20230
- Coil Voltage
- 230V AC
- Colour
- Grey
- Contact Configuration
- 2 NO
- Current Rating
- 25A
- Depth
- 65mm
- Dimensions
- (H)85 mm x (W)17.7 mm x (D)65 mm
- Frequency
- 50 Hz
- Guarantee
- 1 Year
- Height
- 85mm
- Material
- Metal/Plastic
- Mounting
- DIN or Panel Mounting
- Number Of Poles
- 2 Pole
- Operating Temperature Range
- -40 - 40°C
- Packaging Types
- Each
- Standards
- IEC 60947-4-1 IEC 60947-5-1
- Storage Temperature Range
- -50 - 90°C
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Weight
- 0.125kg
- Width
- 17.7mm
