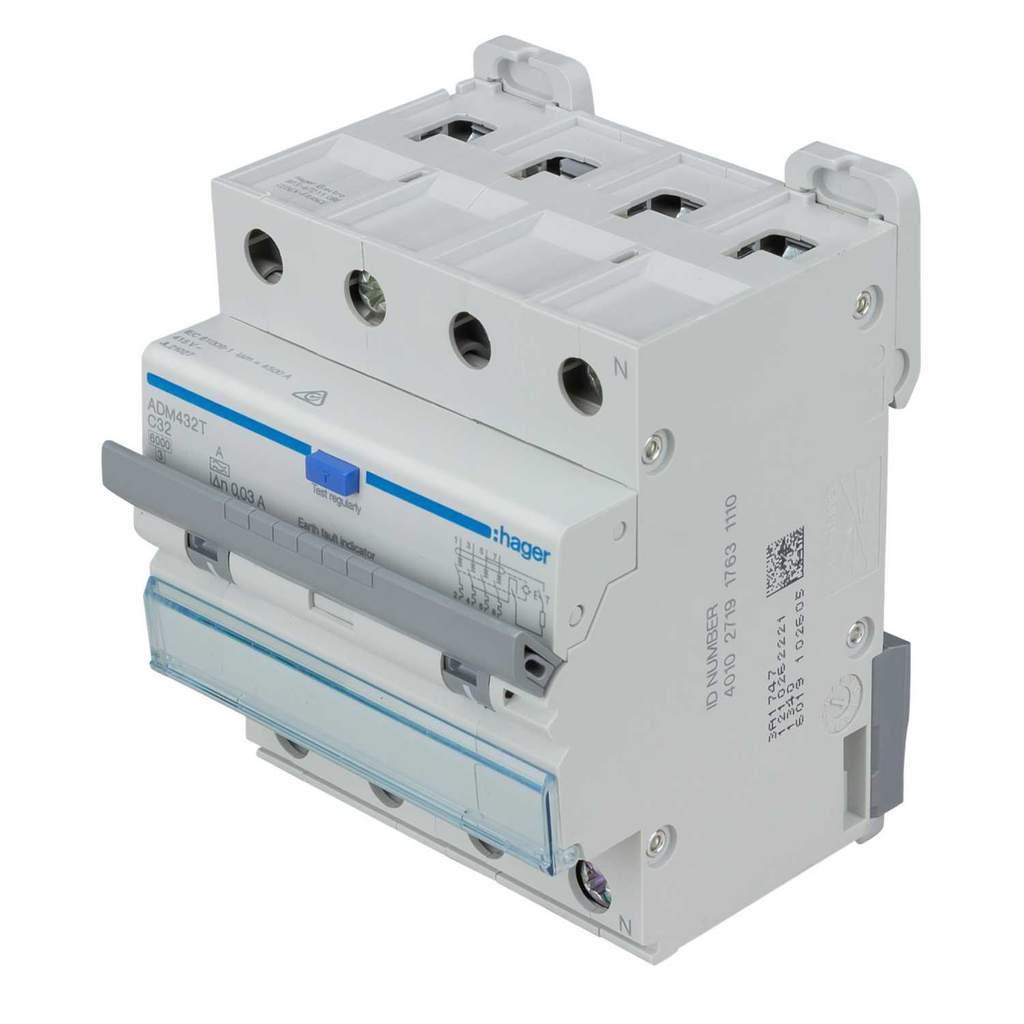

Hager 32A 4 Pole 6kA C Curve 30mA ADM RCBO
Part Number: ADM432T
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Combines the overcurrent functions of an MCB with the earth fault functions of an RCD
- Four module device
- 3 pole and switched neutral
- Breaks both phase and neutral conductors
- Transparent circuit identification label holder
- Earth fault indicator
- Inbuilt test switch
- Colour
- Grey
- Current Rating
- 32A
- Depth
- 70mm
- Dimensions
- (H)84 mm x (W)71 mm x (D)70 mm
- Frequency
- 50 Hz
- Guarantee
- 2 Years
- Height
- 84mm
- Incoming Terminal Capacity
- 16mm²
- Ip Rating
- IP20
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 4
- Number Of Poles
- 4 Pole
- Outgoing Terminal Capacity
- 16mm²
- Packaging Types
- Each
- Product Range
- ADM
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- AS/NZS 61009-1
- Torque Settings
- 2 N m
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 30mA
- Type
- RCBO
- Voltage Rating
- 415V AC
- Weight
- 0.439kg
- Width
- 71mm
