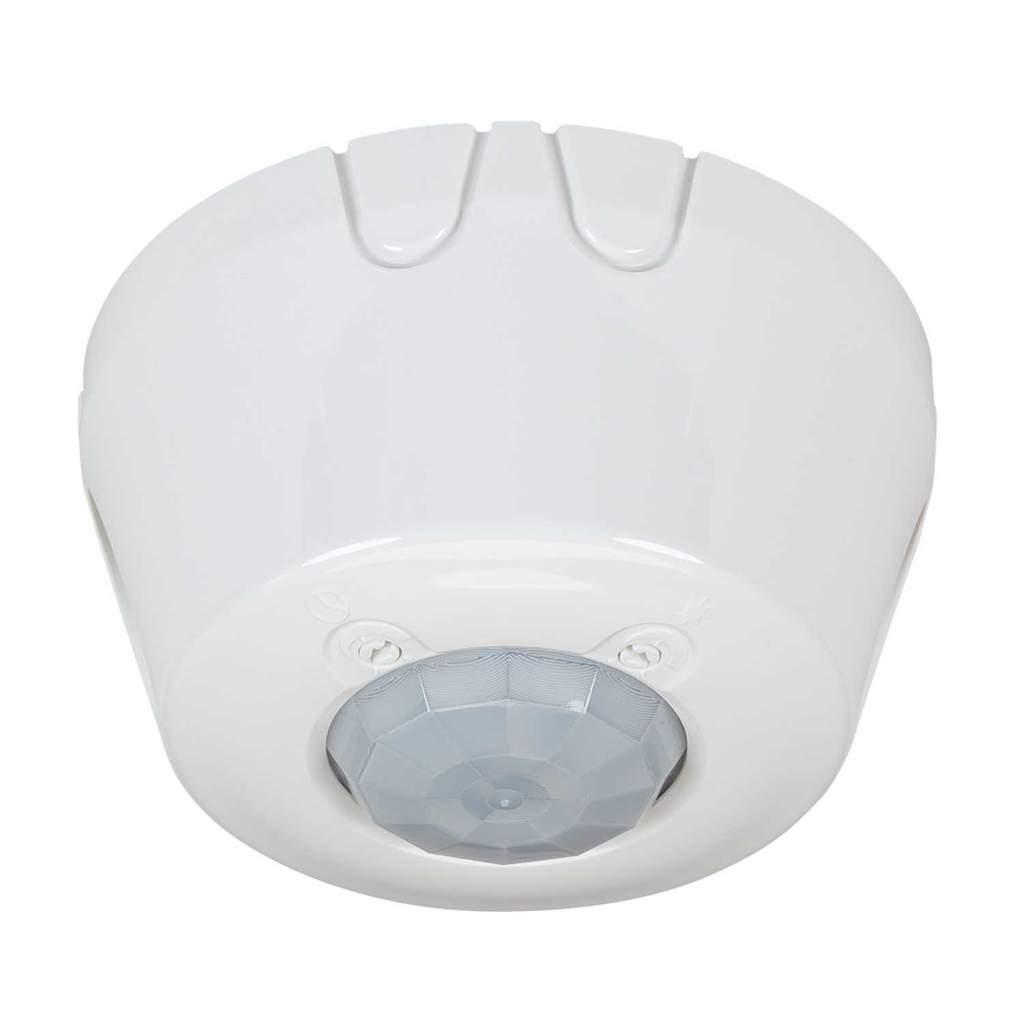

HPM Surface Mount 360 Degree PIR Motion Sensor White
Part Number: 630S02WE
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Passive infrared motion sensor, surface mounted
- 360° detection angle
- 8m detection area at 2.5m mounting height
- 10 lux – 1275 lux adjustment range
- 10 sec - 10min adjustment range
- No manual override
- This product does not require a minimum load to operate
- Colour
- White
- Depth
- 52mm
- Detection Angle
- 360°
- Detection Range
- 8m
- Diameter
- 90mm
- Dimensions
- (Dia)90 mm x (D)52 mm
- Guarantee
- 3 Years
- IP Rating
- IP20
- Material
- Plastic
- Maximum Switching Load
- 1000W
- Mounting
- Surface
- Mounting Height
- 2.5m
- Number Of Wire Connections
- 2
- Override Switch
- No
- Packaging Types
- Each
- Product Range
- PIR Sensor
- Sensor
- PIR
- Shape
- Round
- Suitable For
- Indoor Use
- Timer Adjustment
- 10 sec - 10 min
- Type
- Motion Sensor
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Voltage Rating
- 240V AC
- Weight
- 0.093kg
