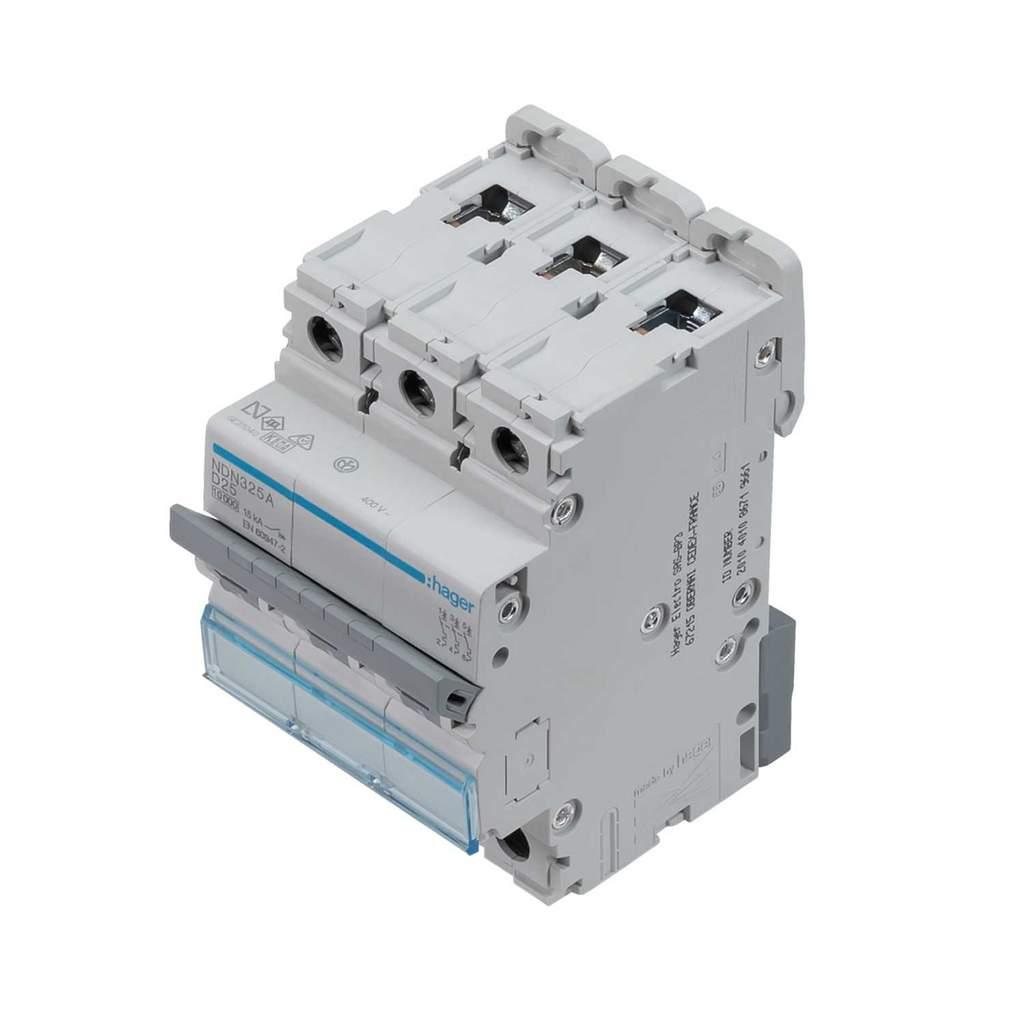

Hager 25A 3 Pole 10kA D Curve NDN MCB
Part Number: NDN325A
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 3 phase miniature circuit breaker
- Thermal-magnetic tripping for overload and short circuit protection
- 2.8 N m tightening torque on top or bottom connections
- Provision for pad lock or seal to restrict unauthorised action
- Transparent circuit identification label holder
- Bi-connect terminals enable supply from either cables in the cage or fork busbars in the slot
- Colour
- Grey
- Current Rating
- 25A
- Depth
- 70mm
- Dimensions
- (H)83 mm x (W)52.5 mm x (D)70 mm
- Guarantee
- 2 Years
- Height
- 83mm
- Incoming Terminal Capacity
- 25mm² Flexible, 35mm² Rigid
- Material
- Plastic
- Mounting
- DIN Rail
- Number Of Modules
- 3
- Number Of Poles
- 3 Pole
- Outgoing Terminal Capacity
- 25mm² Flexible, 35mm² Rigid
- Packaging Types
- Each
- Product Range
- NDN
- Short Circuit Rating
- 10kA
- Standards
- EN 60898-1, AS/NZS 60898-1
- Tripping Characteristics
- D Curve
- Type
- MCB
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 415V AC
- Weight
- 0.338kg
- Width
- 52.5mm
