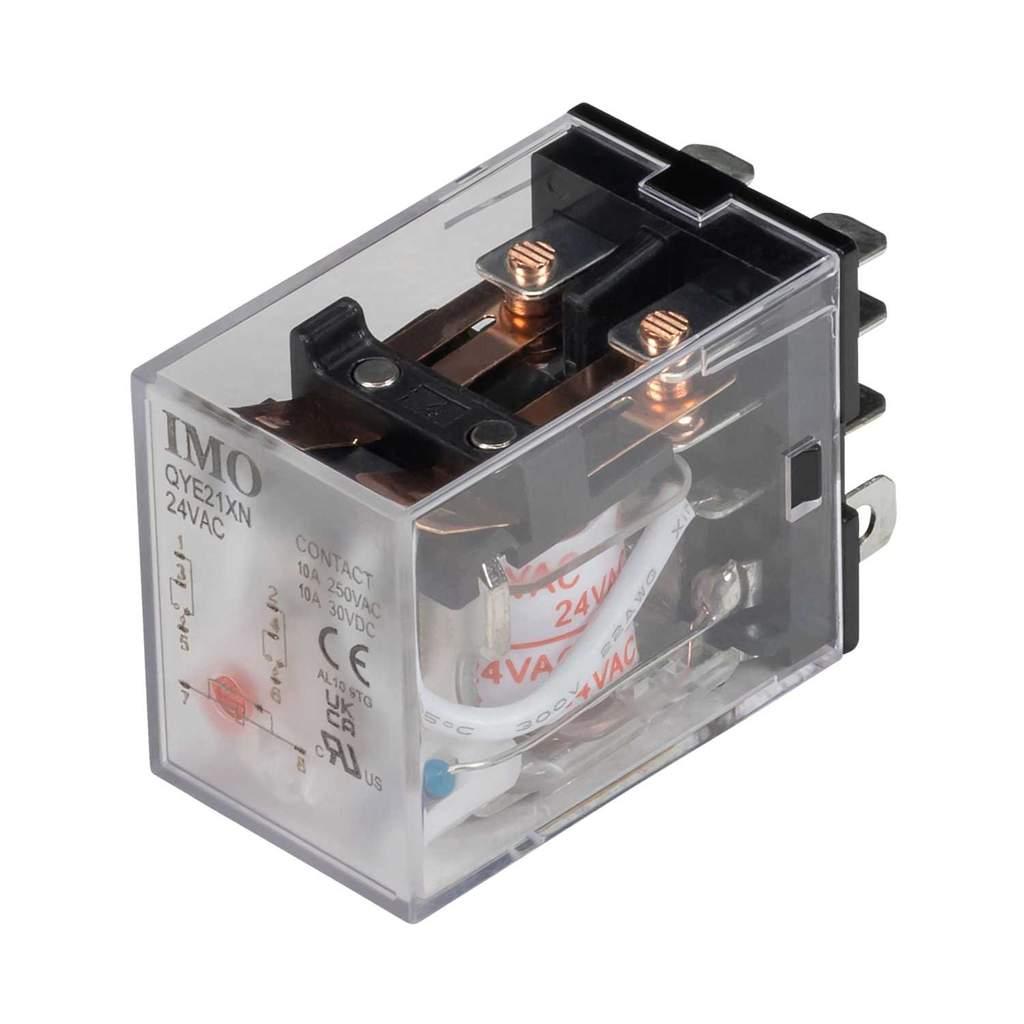

IMO 8 Pin 10A 24V AC 2 Pole CO Miniature Power Relay
Part Number: QYE21XN24AC
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- 10A Switching Capability
- 240V AC coil
- 1.5kV dielectric strength (between coil and contacts)
- With LED indicator
- RoHS compliant
- Conforms to the CE low voltage directive
- Changeover
- Yes
- Coil Voltage
- 24V AC
- Colour
- Transparent
- Contact Configuration
- 2 CO
- Current Rating
- 10A
- Depth
- 41.6mm
- Dimensions
- (H)28 mm x (W)21.3 mm x (D)41.6 mm
- Guarantee
- 1 Year
- Height
- 28mm
- Led Indication
- Yes
- Material
- Plastic / Metal
- Maximum Operating Temperature
- 55°C
- Minimum Operating Temperature
- -40°C
- Mounting
- Plug-In
- Number Of Pins
- 8
- Number Of Poles
- 2 Pole
- Packaging Types
- Each
- Product Range
- Miniature General Purpose Power Relay
- Type
- Plug In Relay
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 24V AC
- Weight
- 0.031kg
- Width
- 21.3mm
