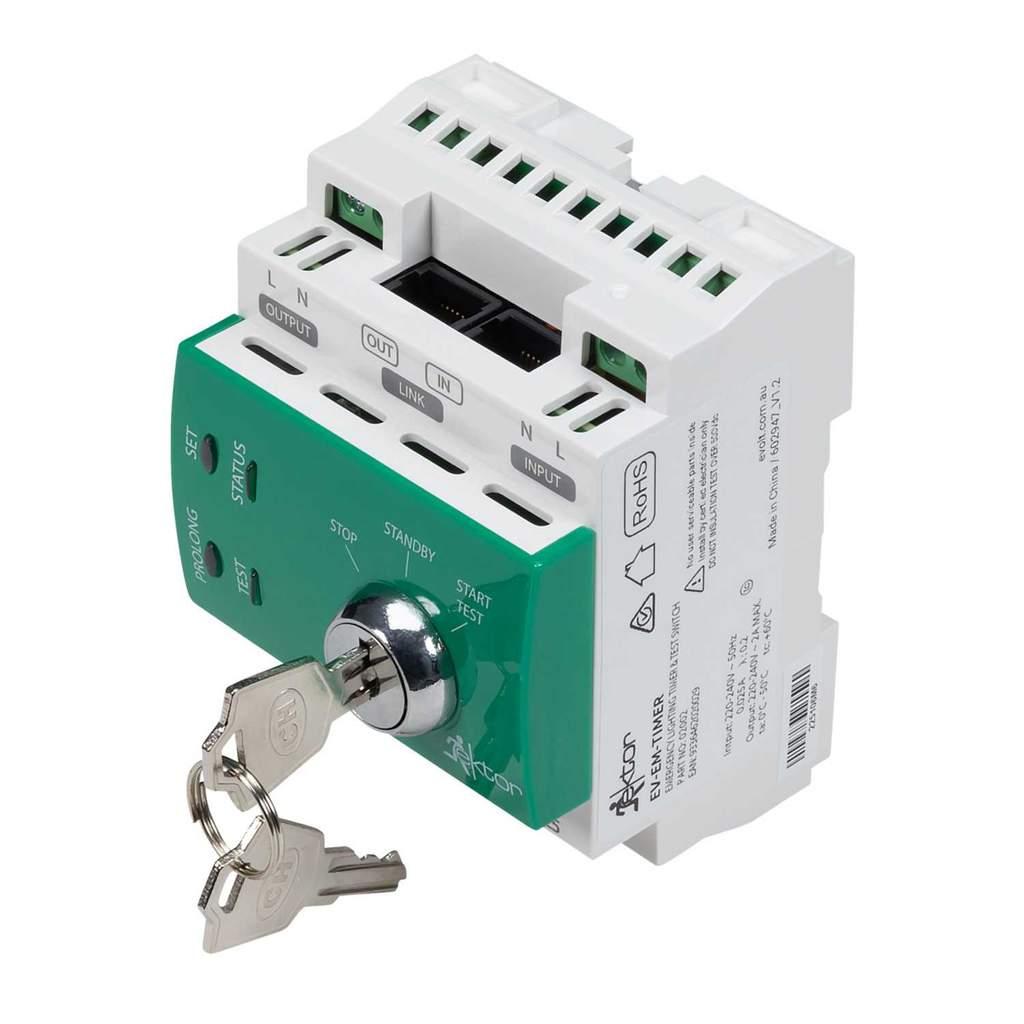

Ektor Manual DIN Mount Emergency Test Switch and Timer
Part Number: 02002
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Easy configuration and control
- Extended period to allow walk around
- All-in-one unit to meet compliance needs
- Manually operated discharge test (90/120 min duration)
- Brown-out trigger ensures AS/NZS 60598.2.22 Clause 22.17 is met
- Prolong, provision for time-delay to remain in emergency mode for lighting requiring cooldown
- Long life electronics
- 5 sensing circuits per unit
- Connect up to 6 units for 30 sensing circuits
- Suitable for switchboard mounting on standard DIN rail
- Requires contactor (not included)
- Ambient Temperature
- 0-40°C
- Colour
- White/Green
- Depth
- 62mm
- Dimensions
- (H)92 mm x (W)72 mm x (D)62 mm
- Guarantee
- 3 Years
- Height
- 92mm
- IP Rating
- IP20
- Material
- Metal / Plastic
- Mounting
- DIN Rail
- Packaging Types
- Each
- Product Range
- Emergency Timer
- Shape
- Rectangular
- Standards
- AS/NZS 61347.2.11 AS/NZS 61347.1 AS CISPR 15 AS/NZS 2293.1
- Type
- Emergency Test Switch and Timer
- Unspsc V18
- 39111710
- Unspsc V24
- 39111710
- Voltage Rating
- 230V AC
- Weight
- 0.249kg
- Width
- 72mm
