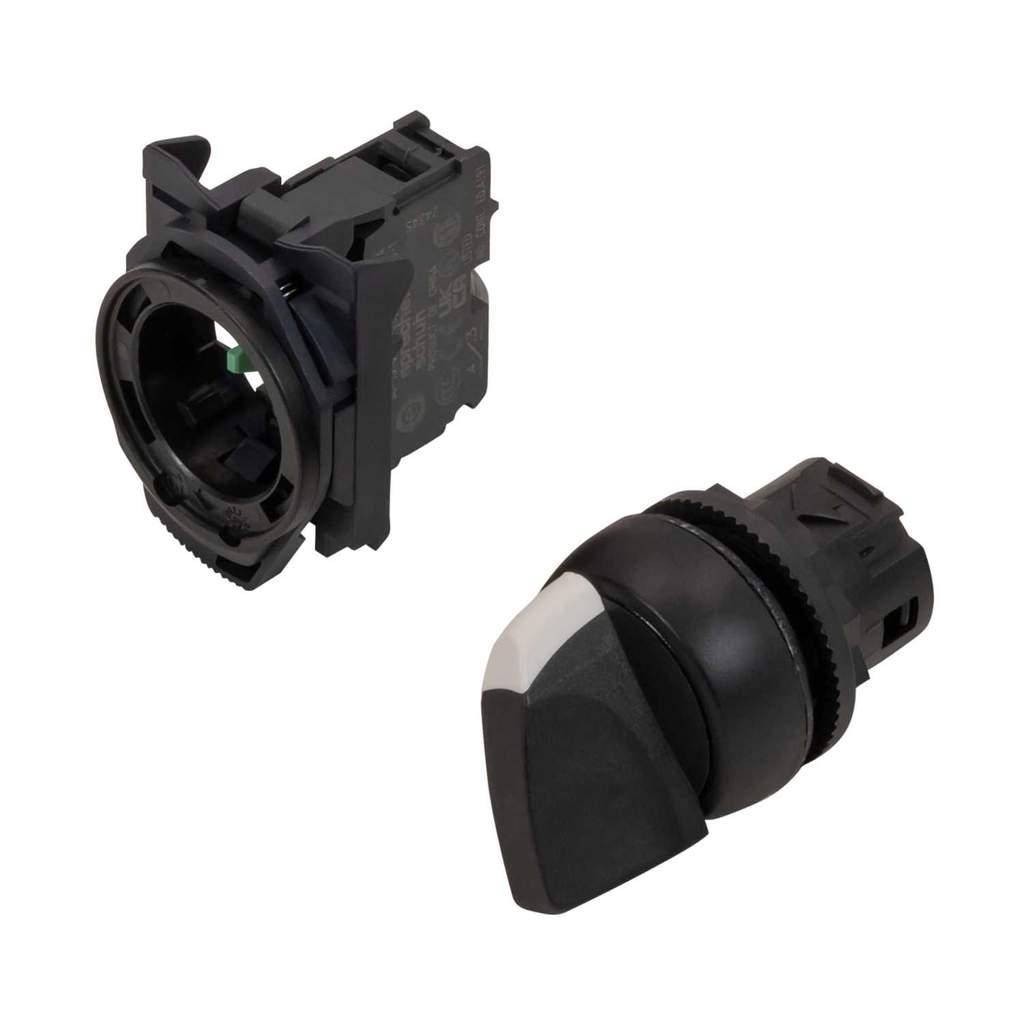

Sprecher+Schuh 2 Position 1NO Stay Put Selector Switch Black
Part Number: D7PSM22PX10HS
Sign in to see price & stockDelivery
We provide free delivery within a 100km radius of your local branch as part of our standard service. This applies to in-stock items and orders placed directly with your local branch.
Delivery is managed at the branch level, and restrictions may apply depending on order size, location, or access. Your branch will contact you to confirm any exceptions or additional details.
Collection
Collection orders will be ready to collect 2 hours after placing your order. This service applies to orders placed directly with your branch and is subject to stock availability.
Your branch will confirm collection details and advise of any exceptions where required.
- Sprecher Schuh D7 line of operator control devices
- 2 position switch with maintained mechanism
- Black short thumb-grip handle with a plastic bezel
- 1 normally open contact
- Installed into standard 22.5mm diameter cut-outs and connected to control circuits with screw connections
- Colour
- Black
- Contact Configuration
- 1 NO
- Cut Out
- 22.5mm
- Diameter
- 22mm
- Dimensions
- (Dia)22 mm x (W)29.8 mm
- Guarantee
- 1 Year
- Head Type
- Short thumb-grip
- IP Rating
- IP66
- Material
- Plastic
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel Mount/Pushbutton Enclosure
- Number Of Positions
- 2
- Operation Type
- Stay Put
- Packaging Types
- Each
- Product Range
- D7
- Supplied With
- Fixing Collar and Contact Block
- Type
- Selector Switch
- Unspsc V18
- 39122217
- Unspsc V24
- 39122217
- Weight
- 0.044kg
- Width
- 29.8mm
